Berger Kraus BK1800KJSR Mini Excavator with KUBOTA engine accessories
Regular price:
€16,952.65
Regular price:
€13,782.64
product unavailable
add to wish list
Description

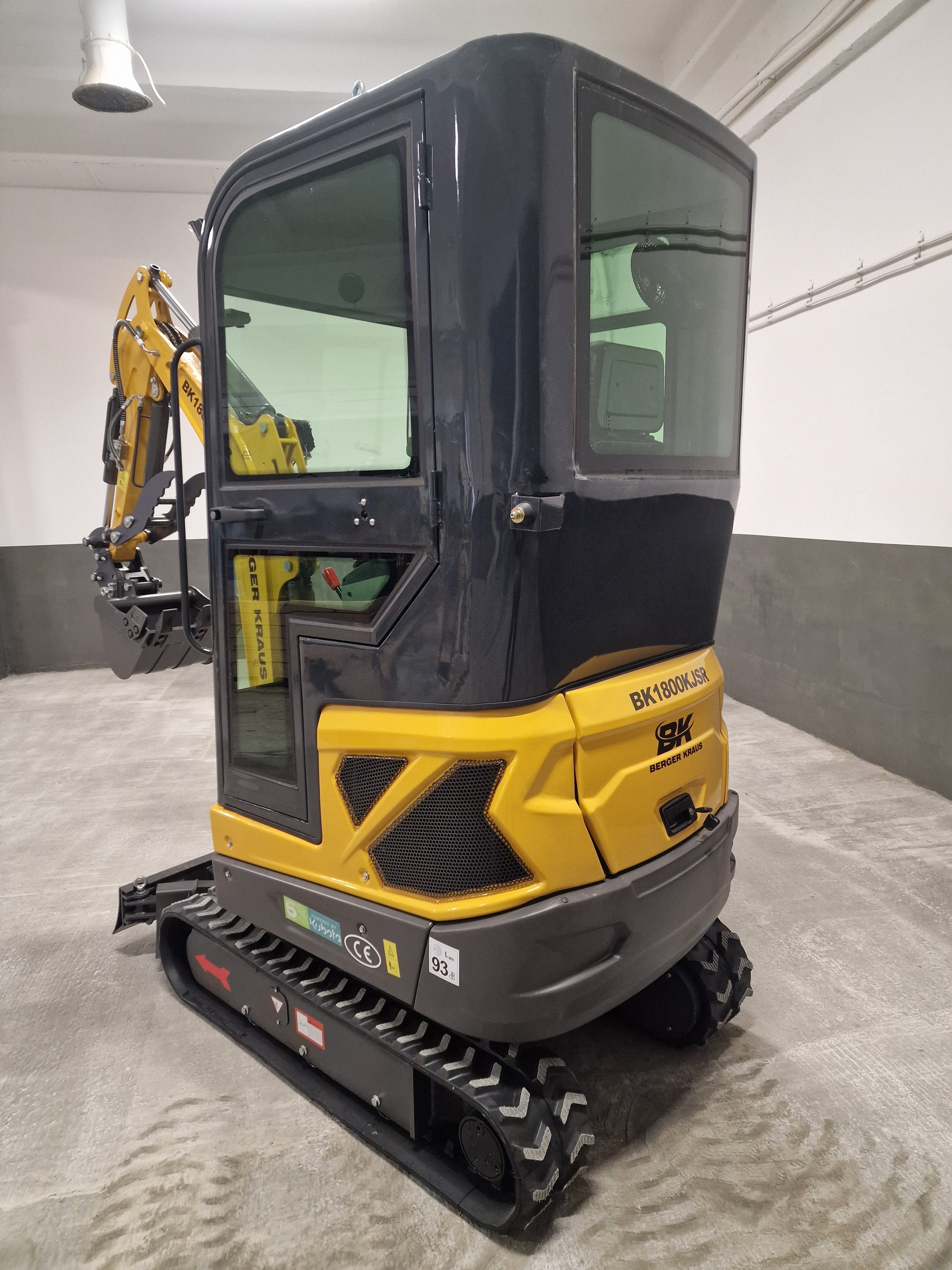

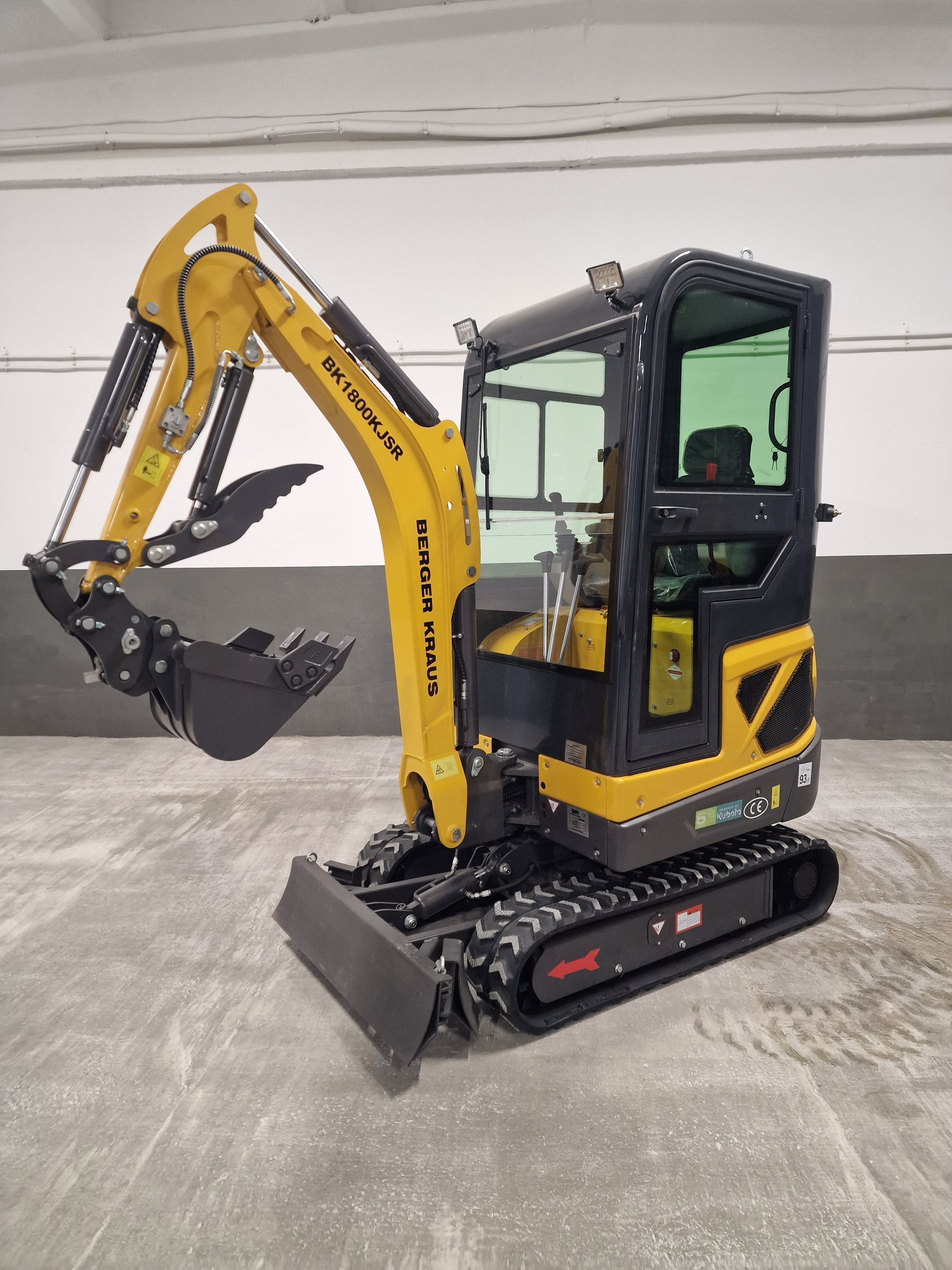

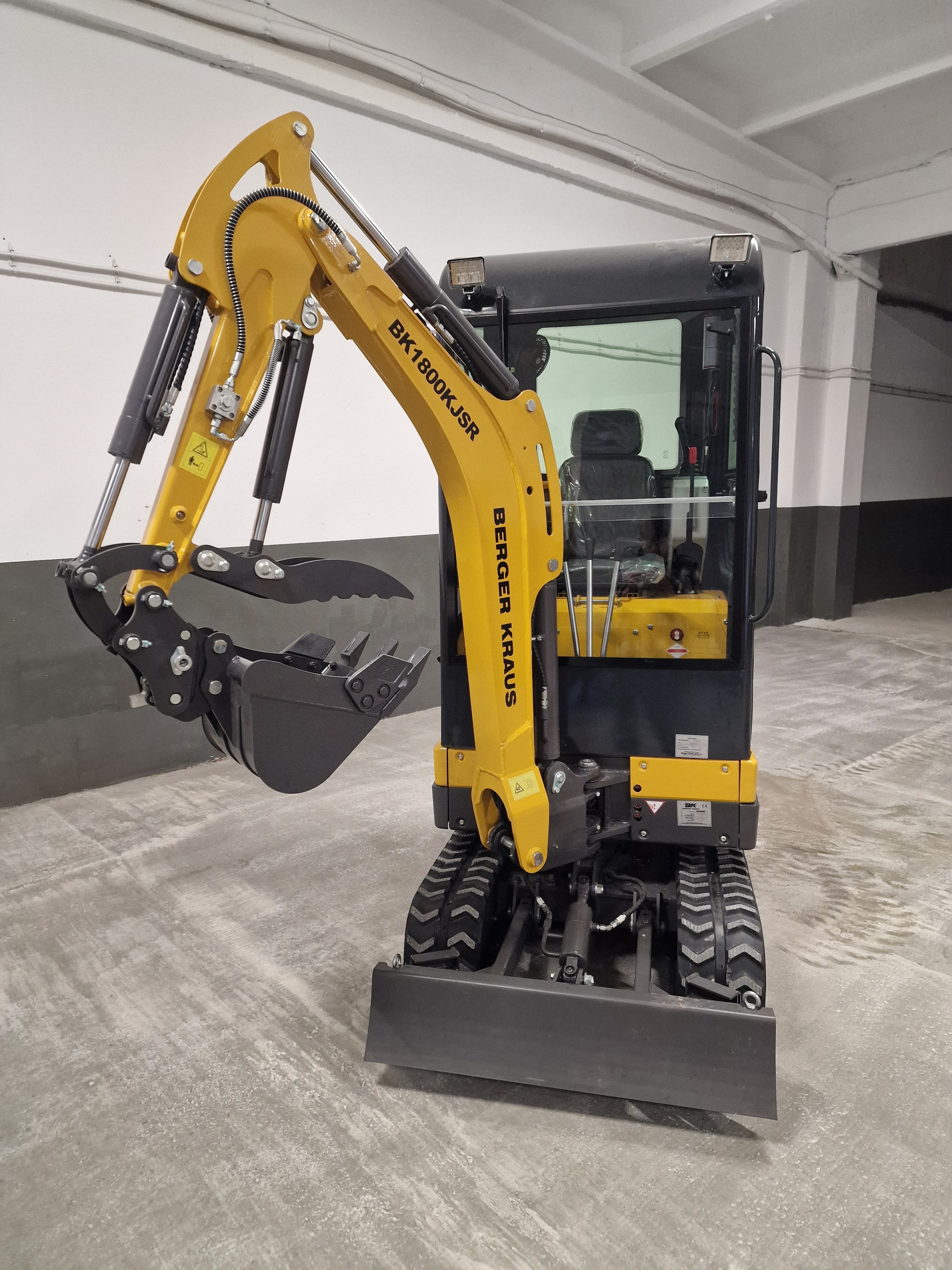

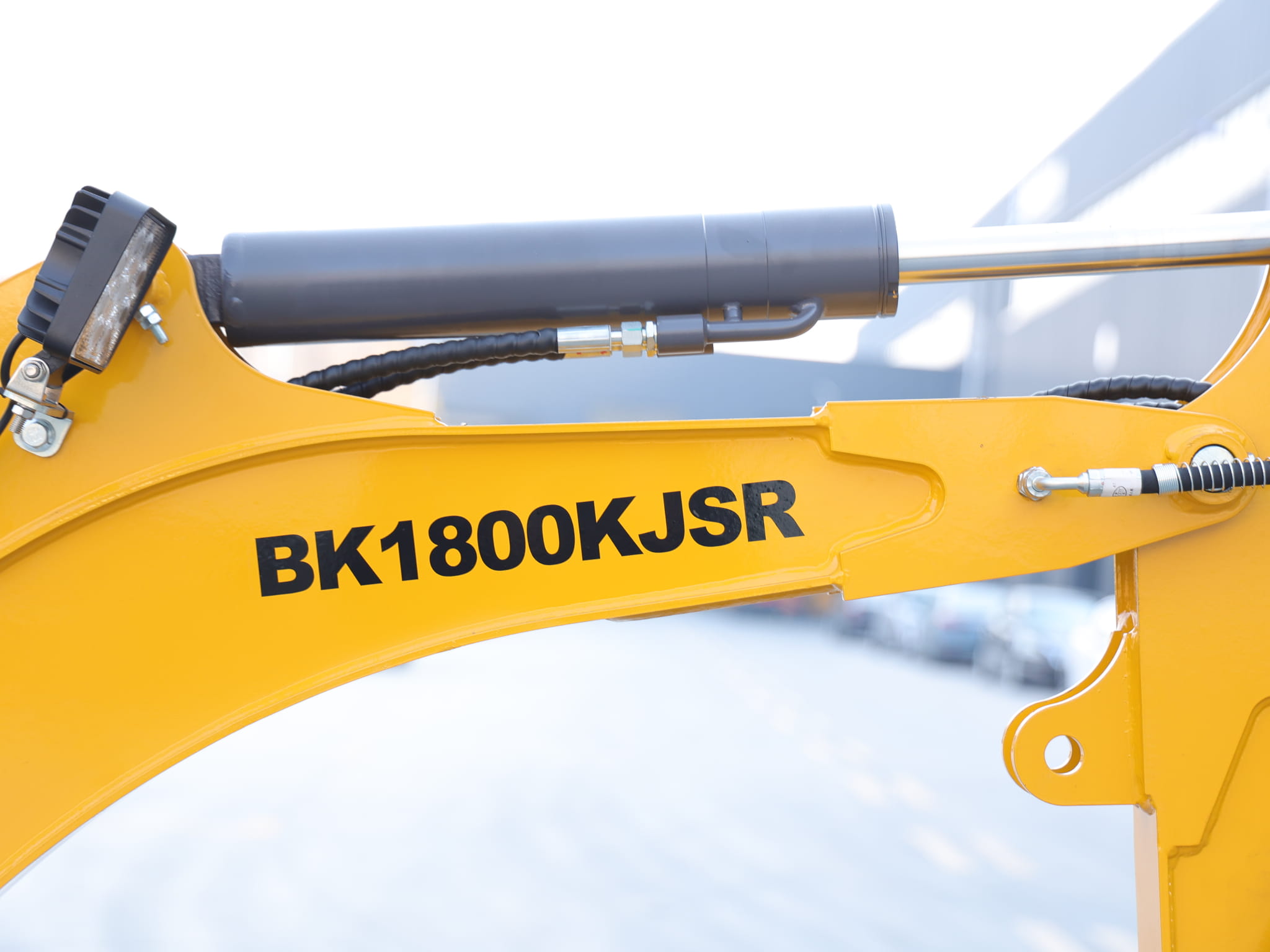

Berger Kraus BK1800KJSR with KUBOTA Engine
The Berger Kraus BK1800KJSR with KUBOTA engine is a robust excavator designed for foundation work, fencing, utility connections and garden/landscape applications.
Price Includes
- Berger Kraus BK1800KJSR excavator with KUBOTA engine and cab
- Spring quick coupler for easy attachment mounting

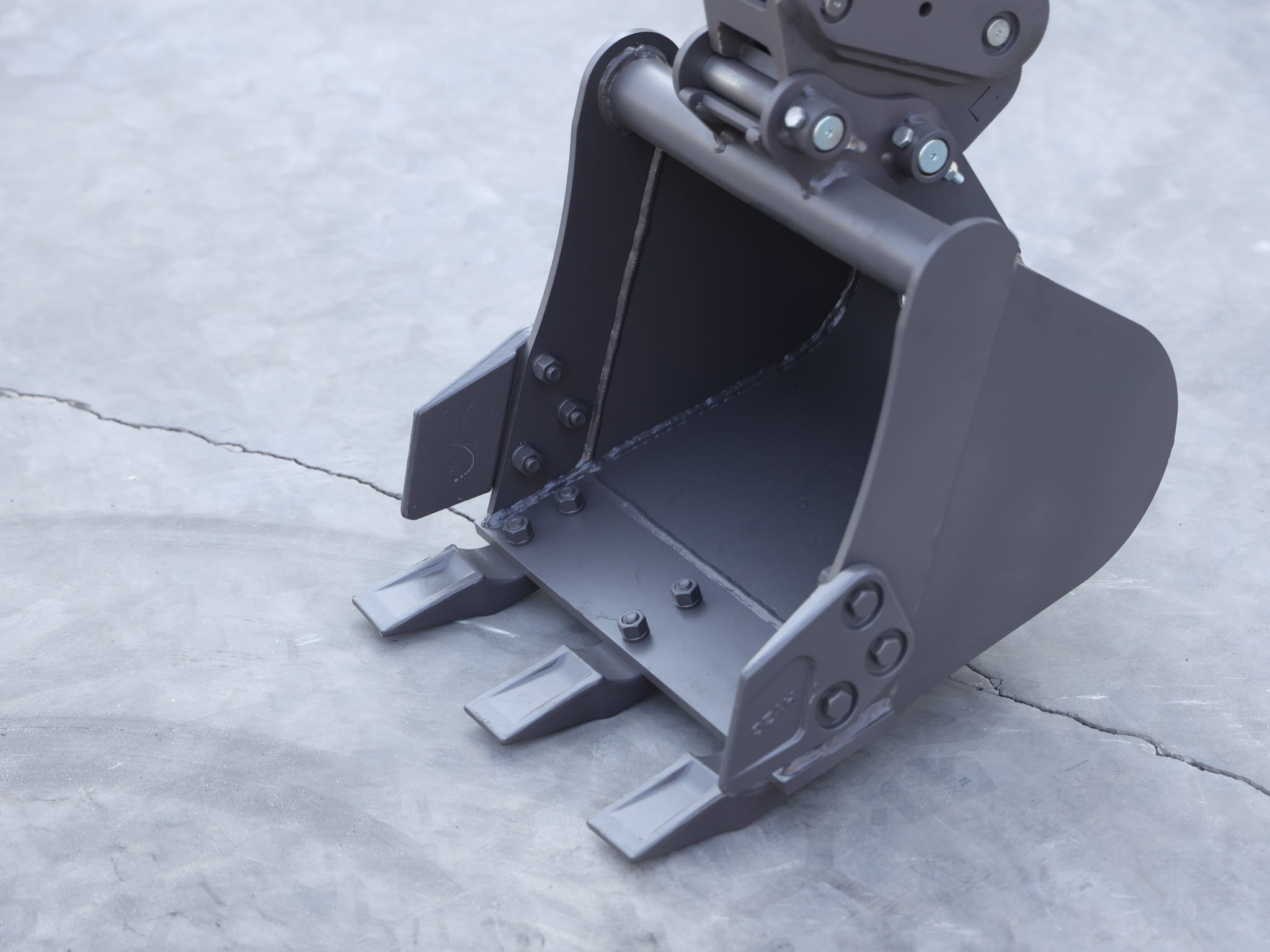

- Bucket, width 200 mm
- Bucket, width 400 mm
- Ditch cleaning bucket, width 1000 mm

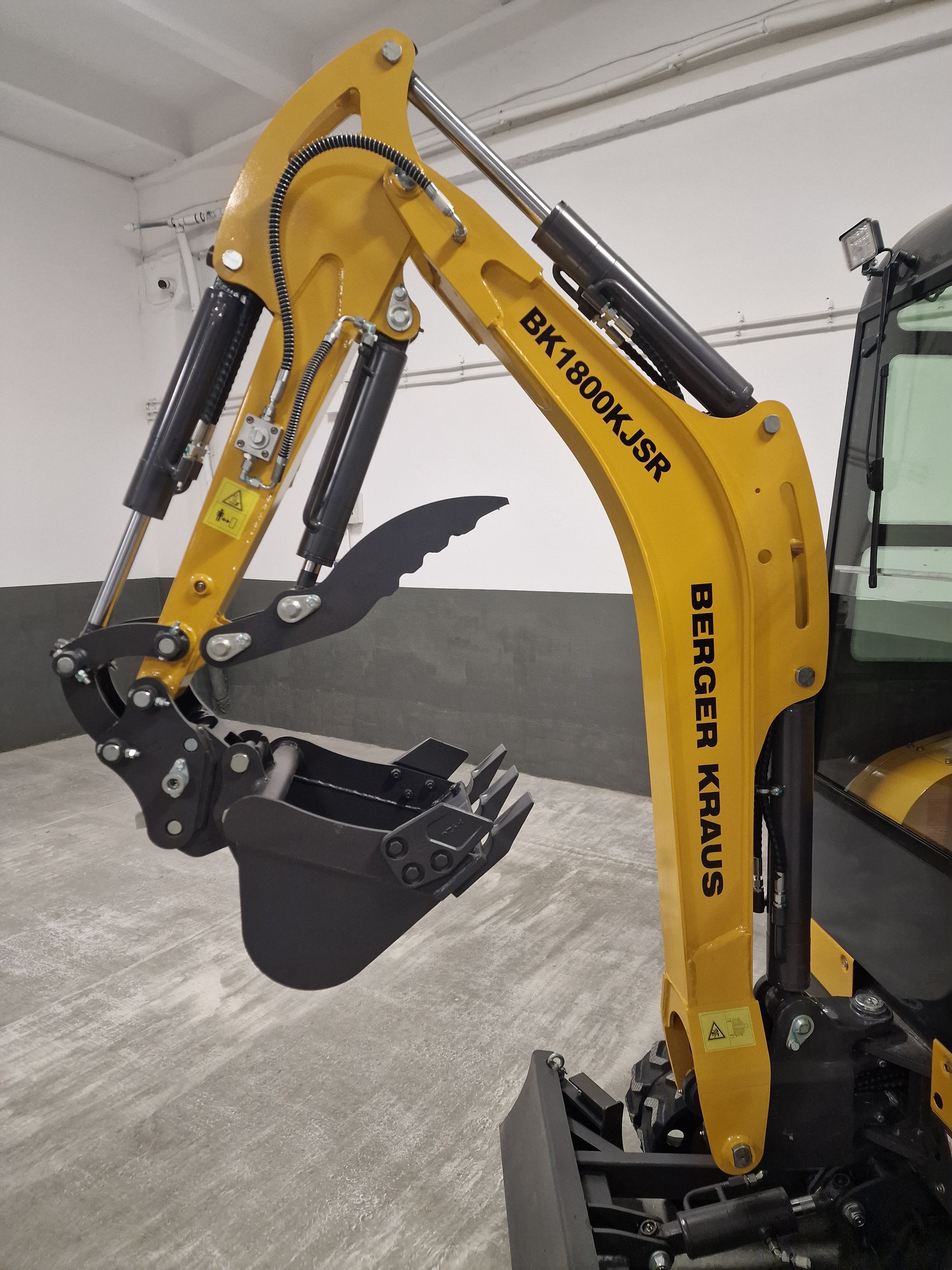

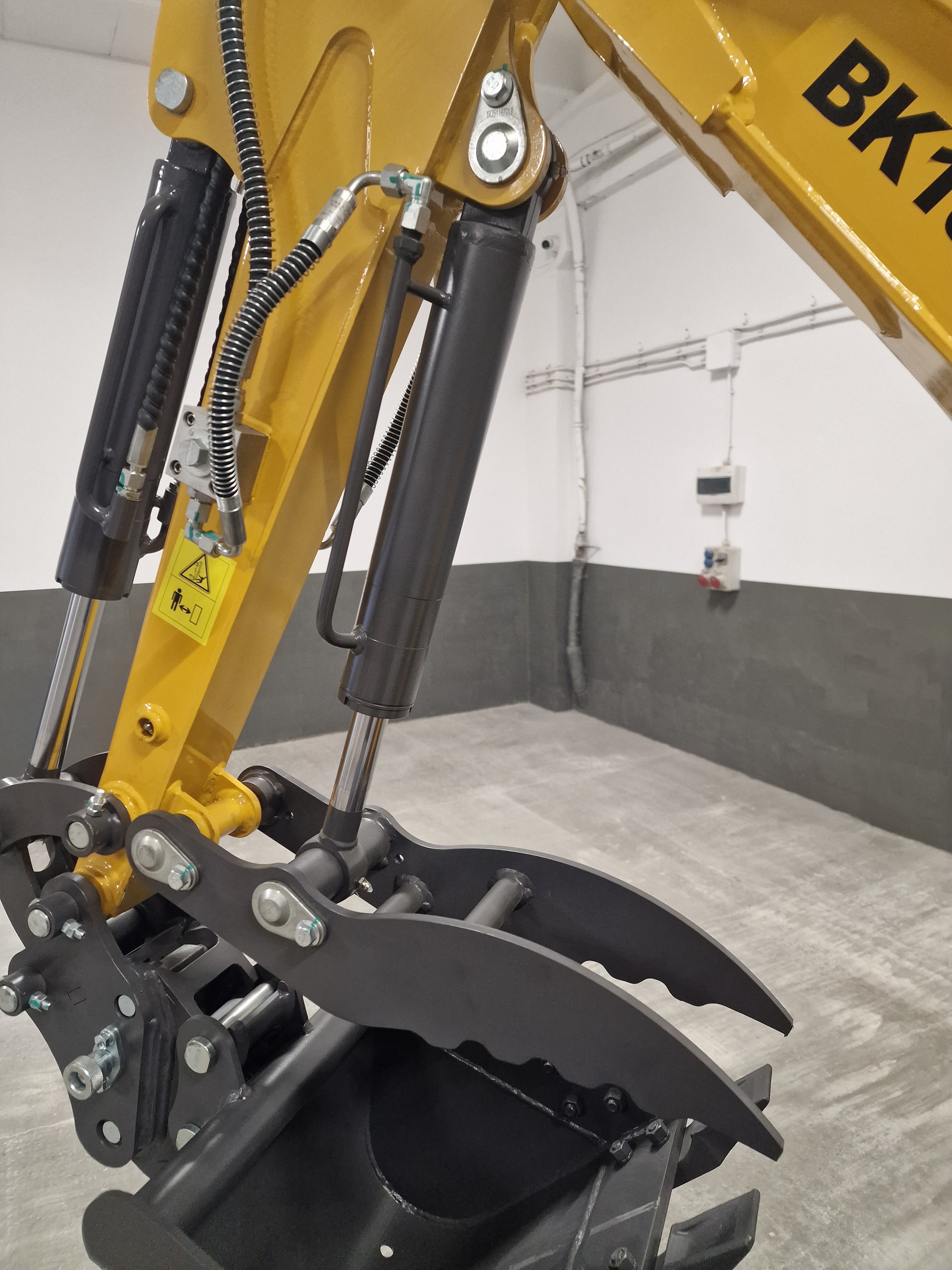

- Hydraulic thumb
Additional Features
- Digging depth: 2.1 m
- 2 fast/slow gears
- Fan
- Opening side window and front

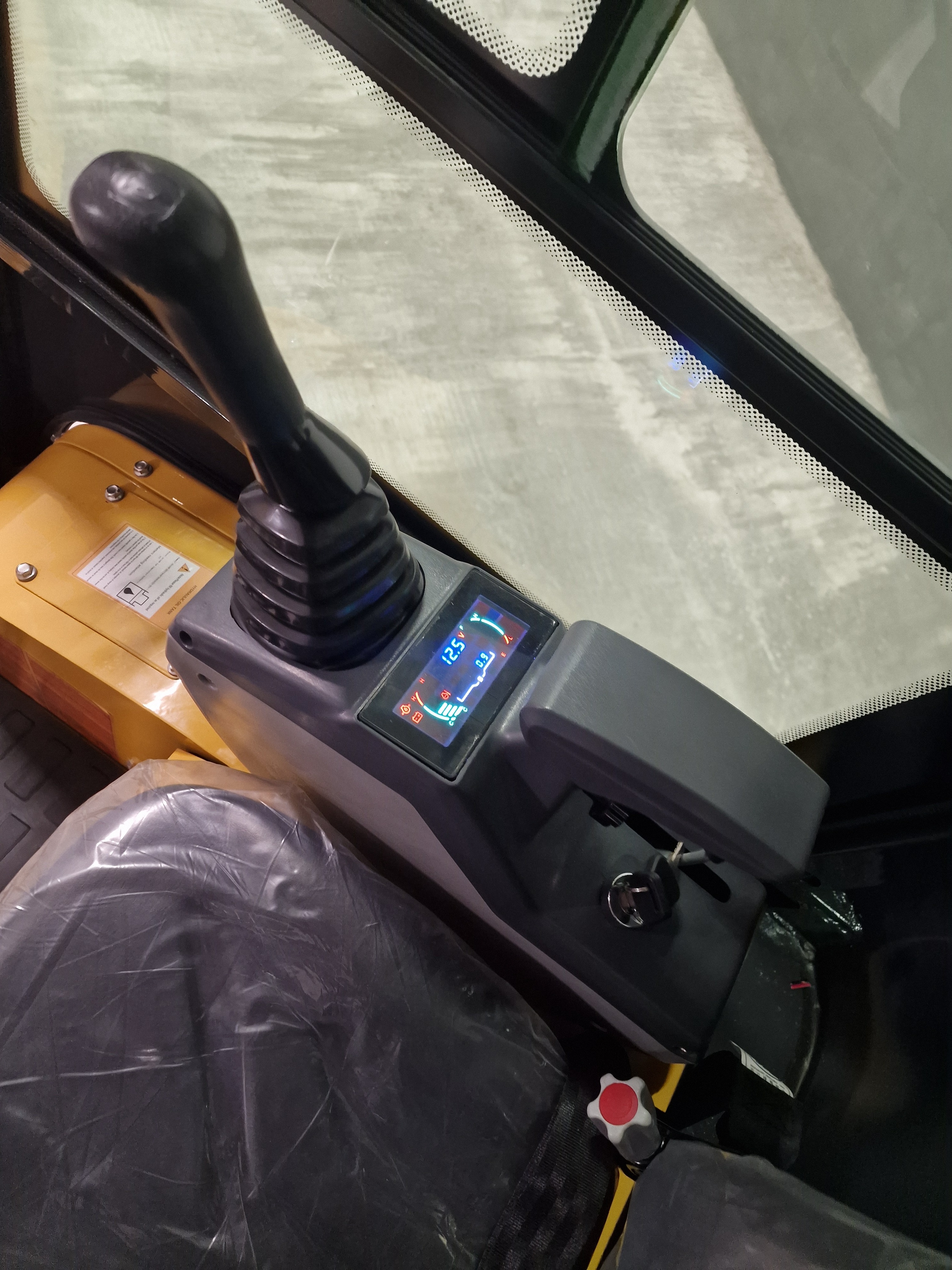

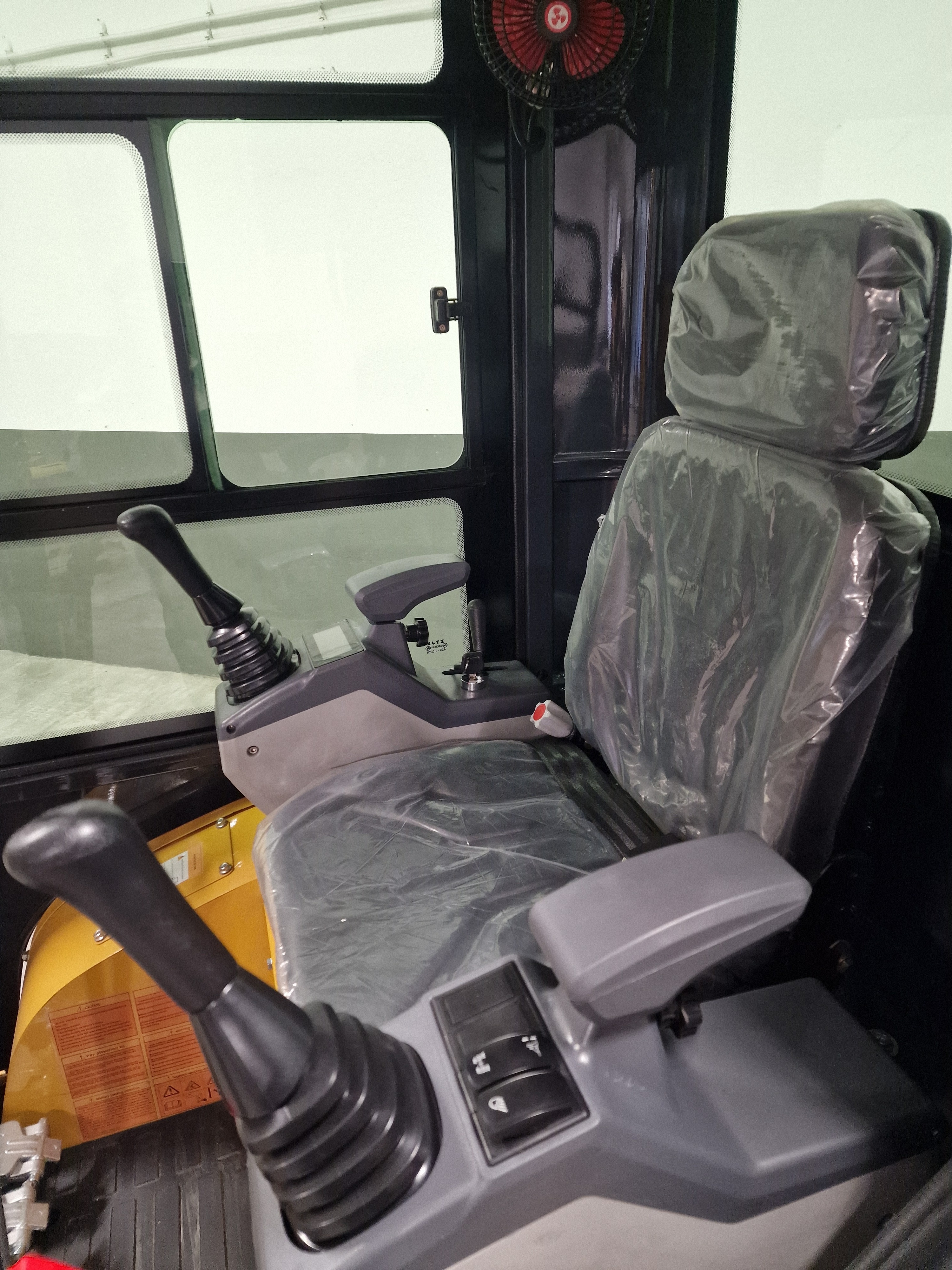

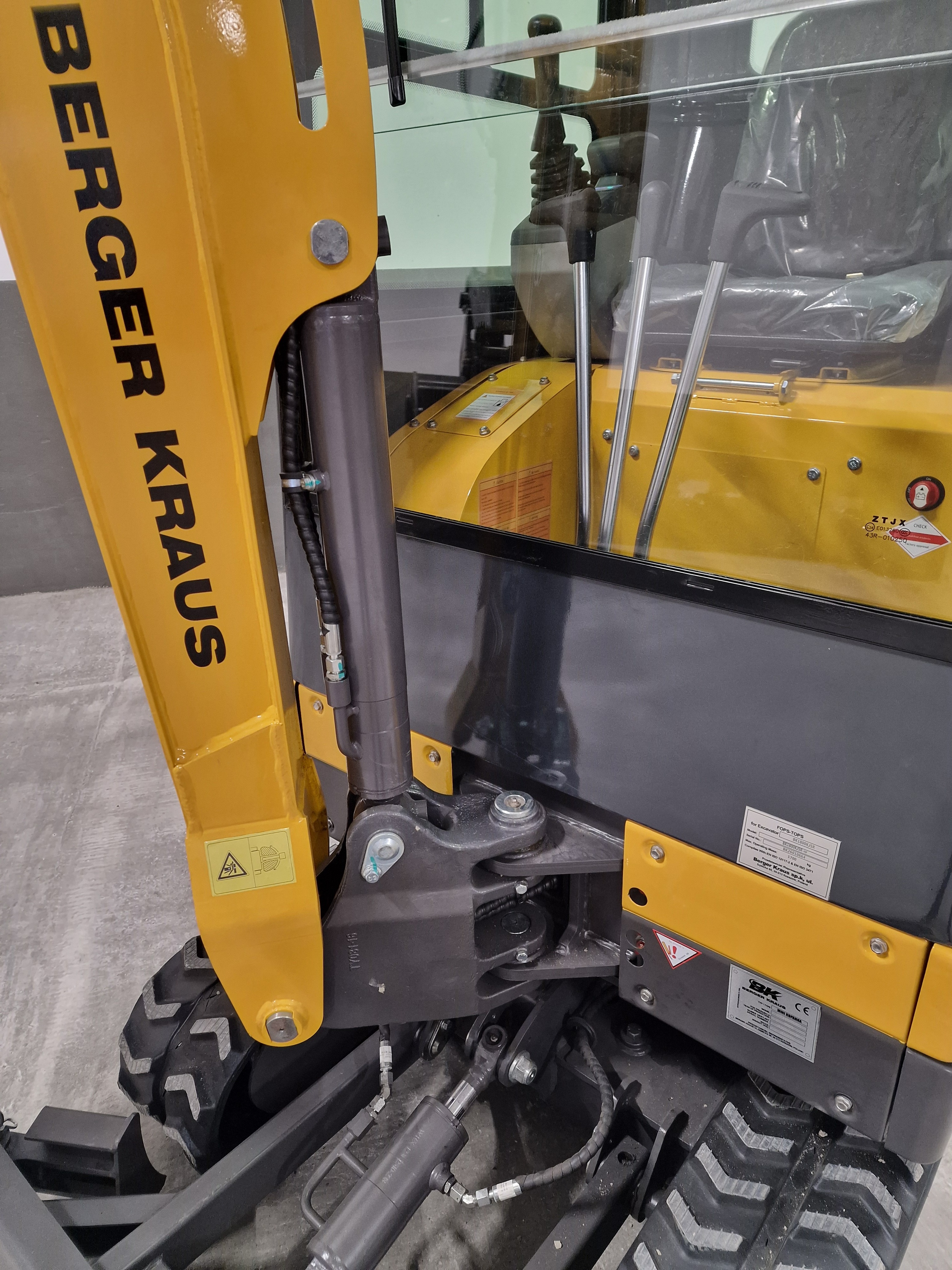

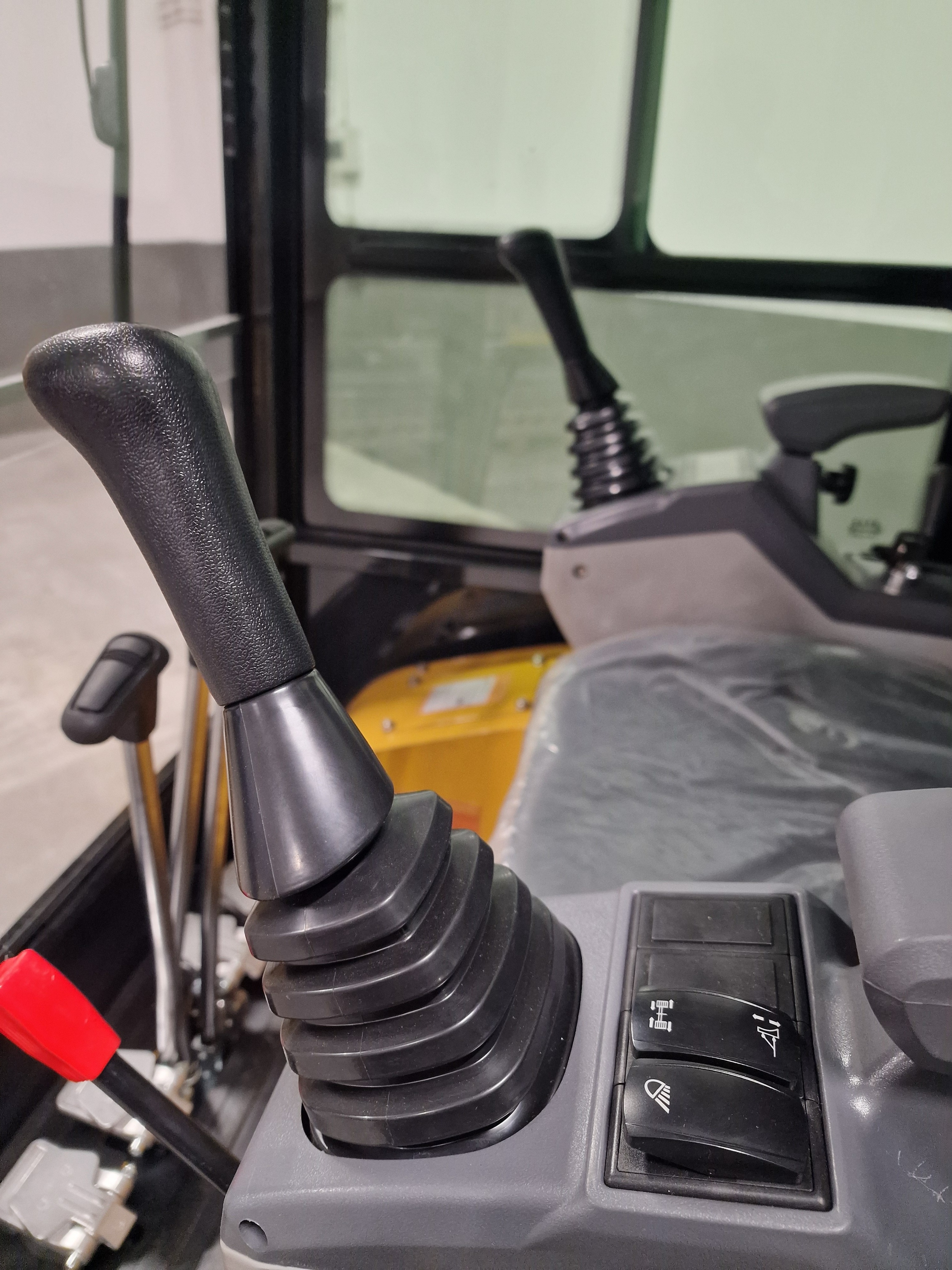

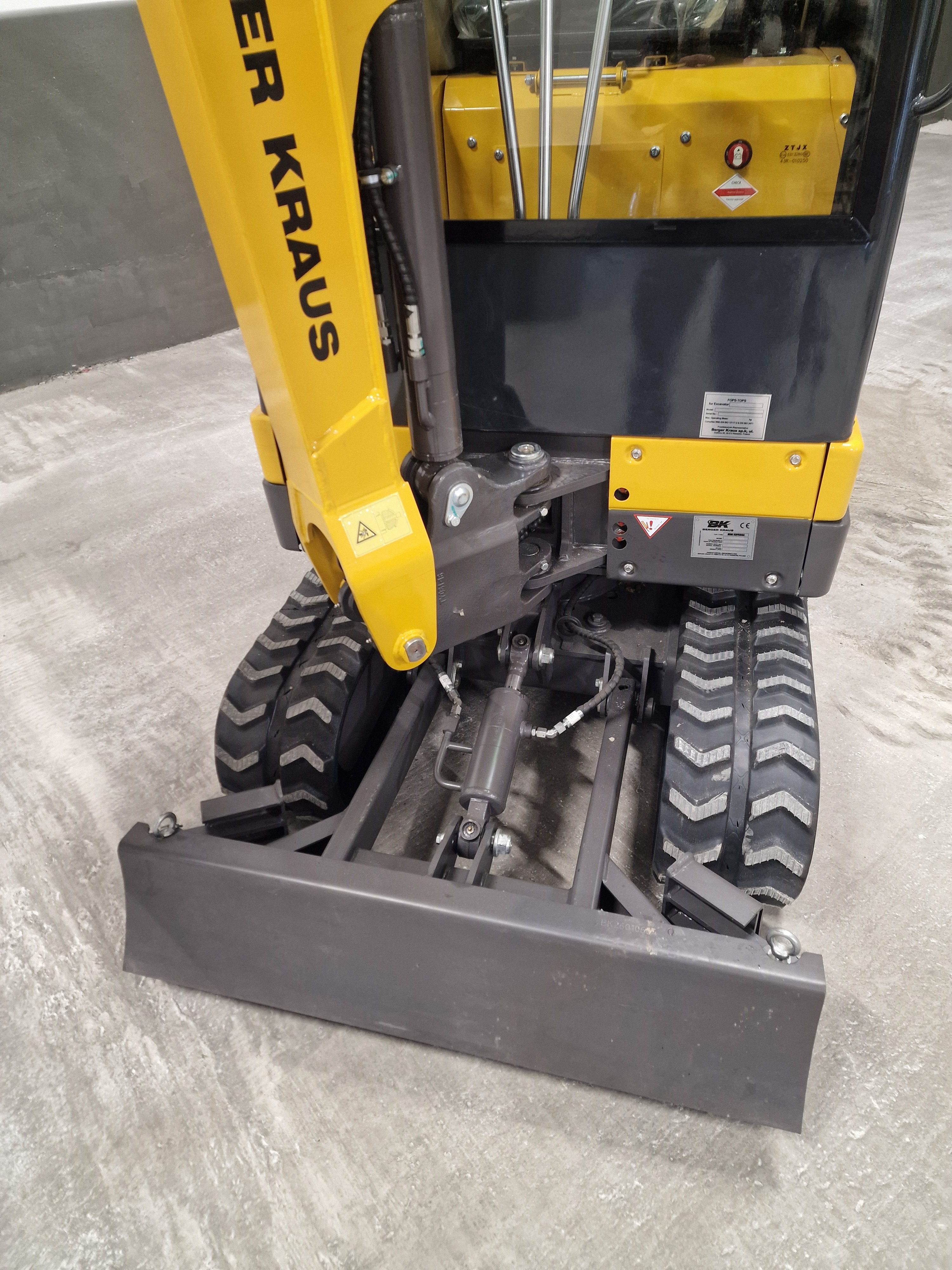

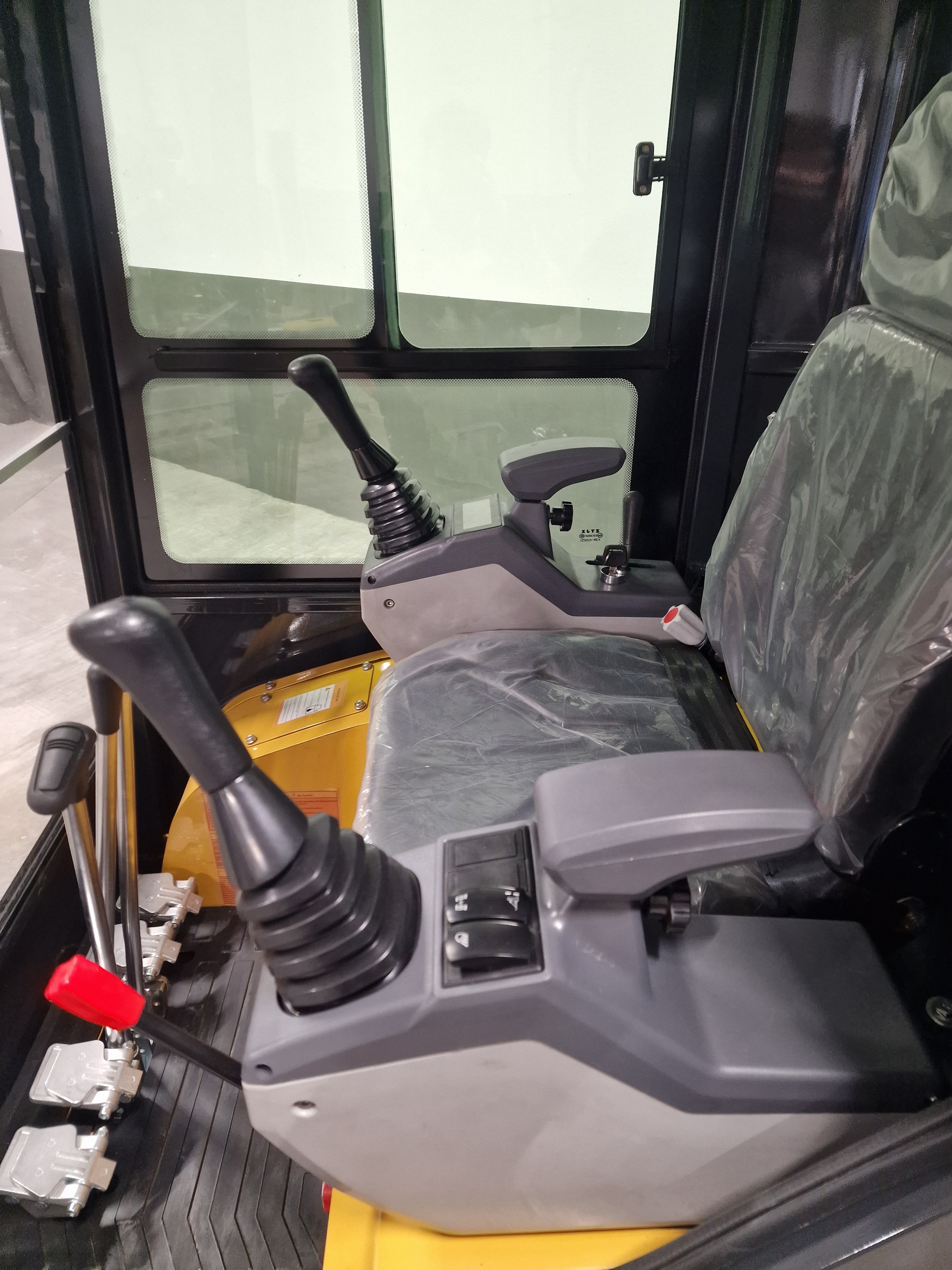

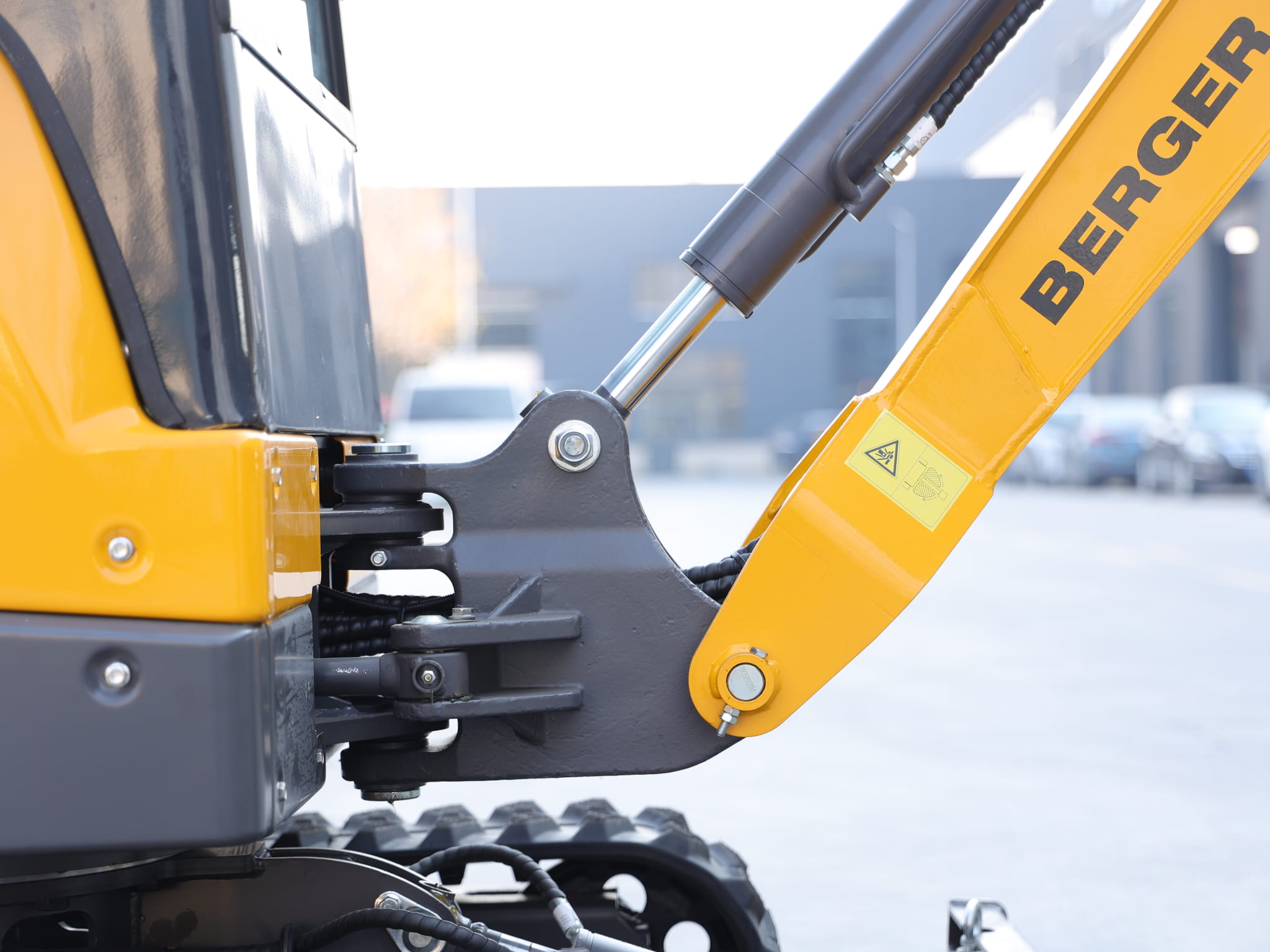

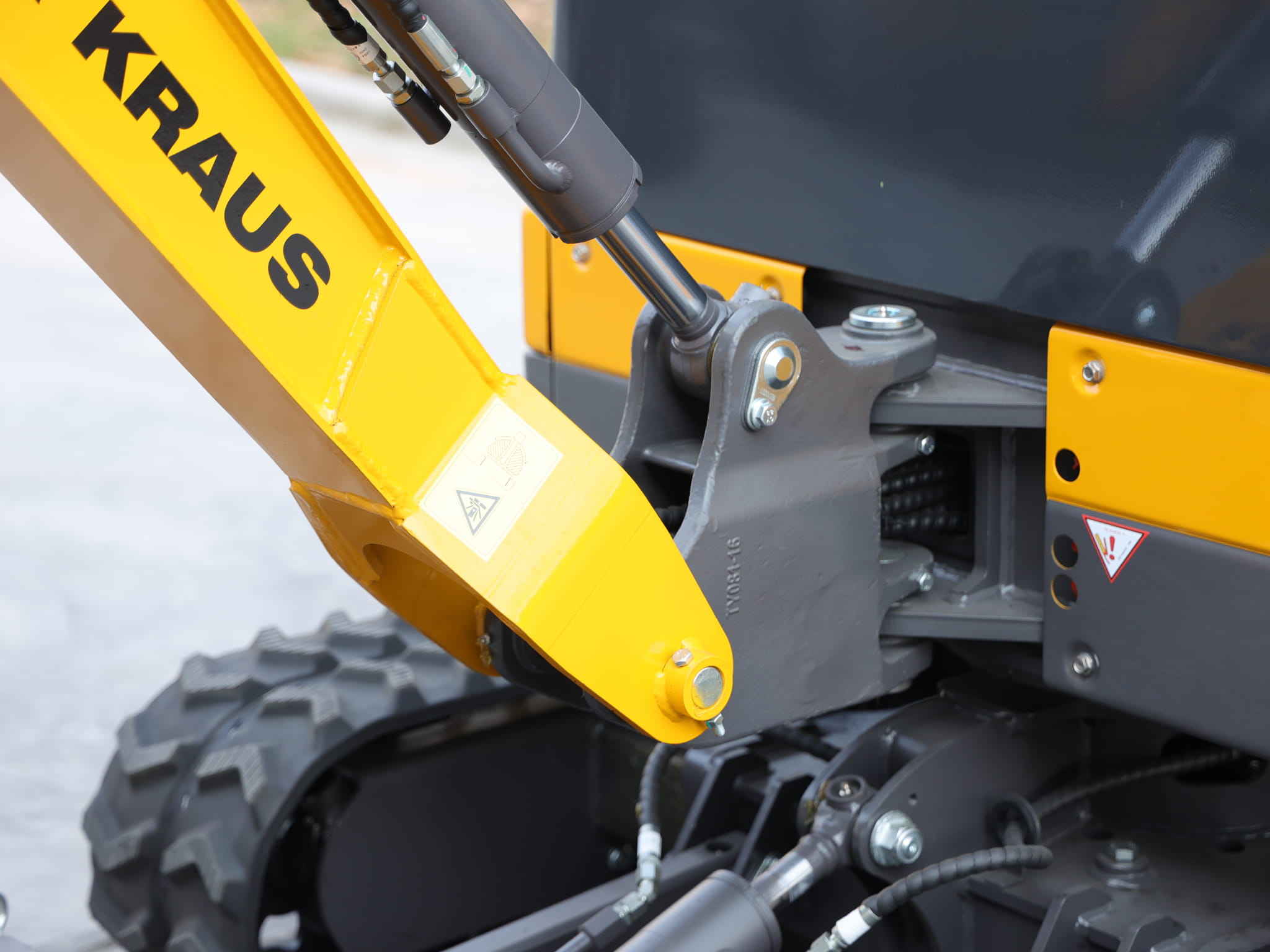

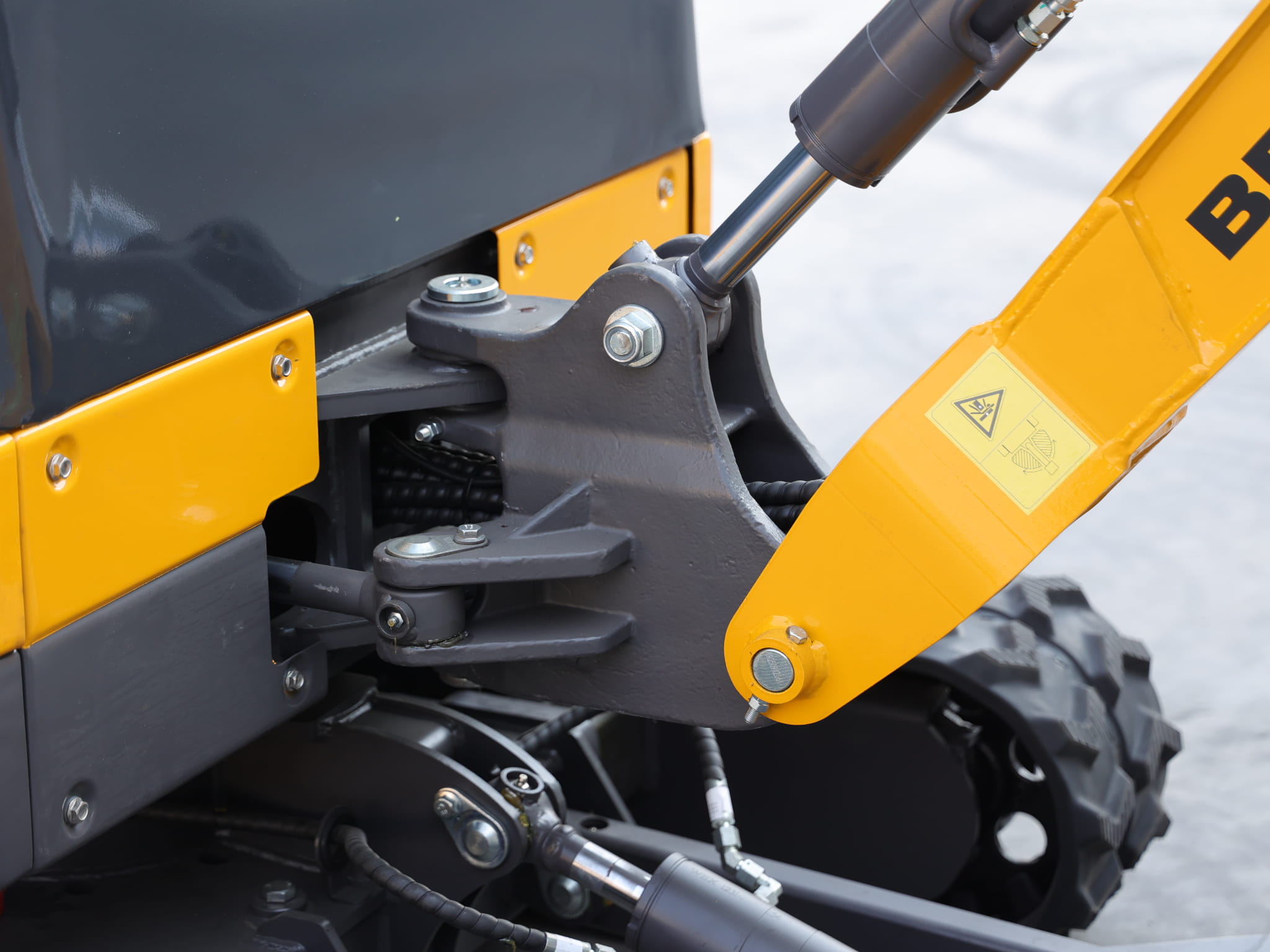

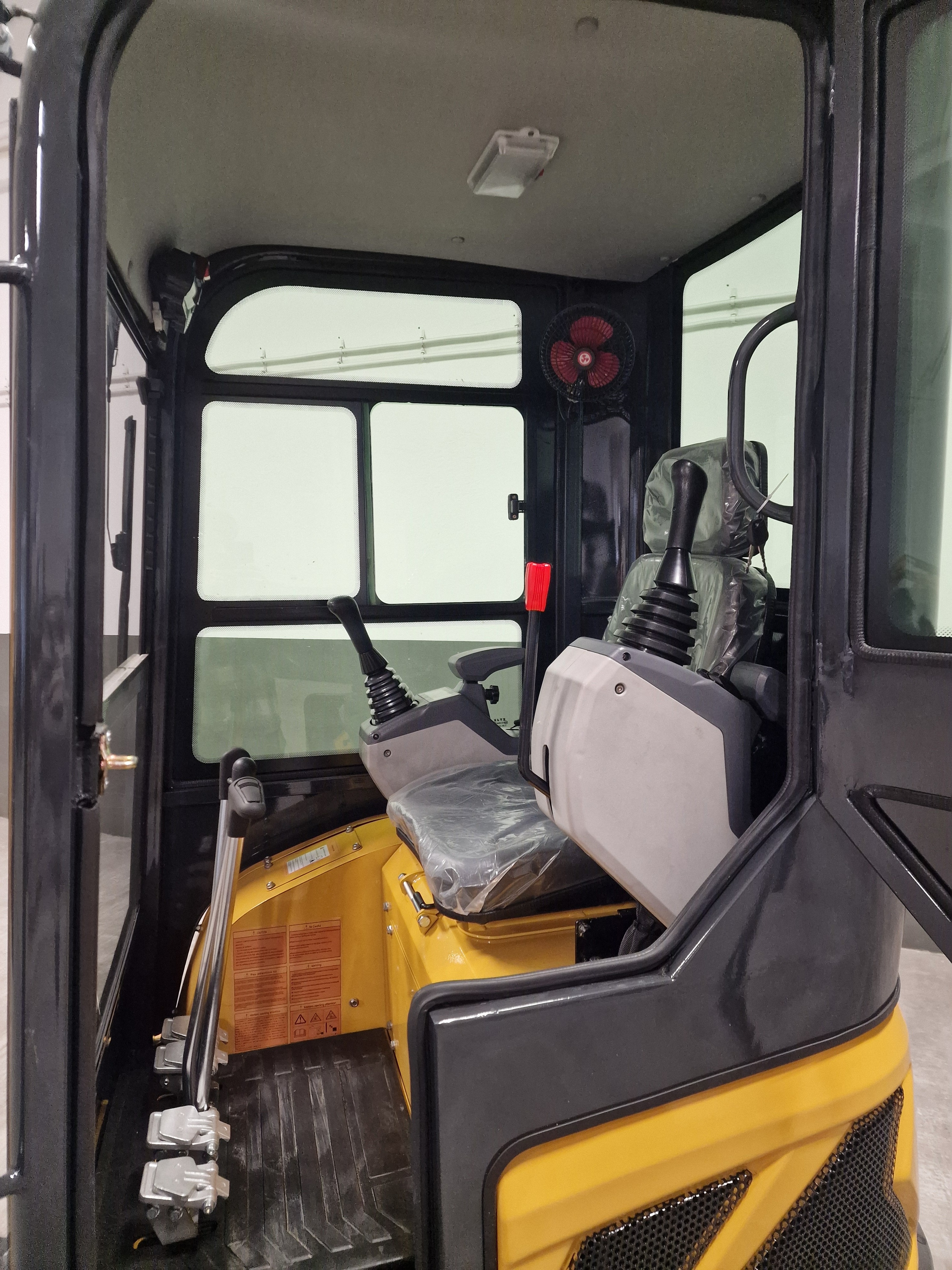

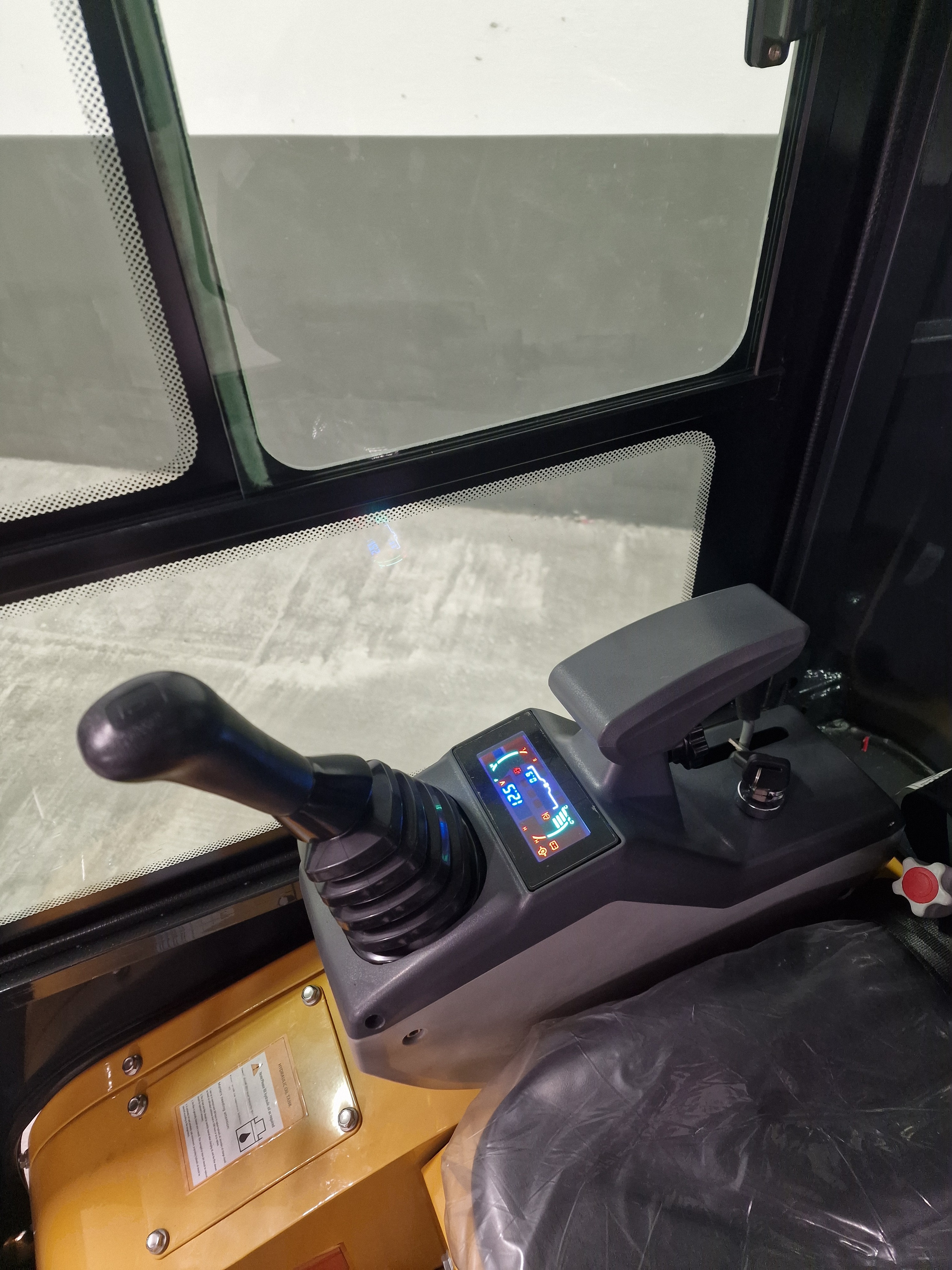

- Offset boom and hydraulic joysticks

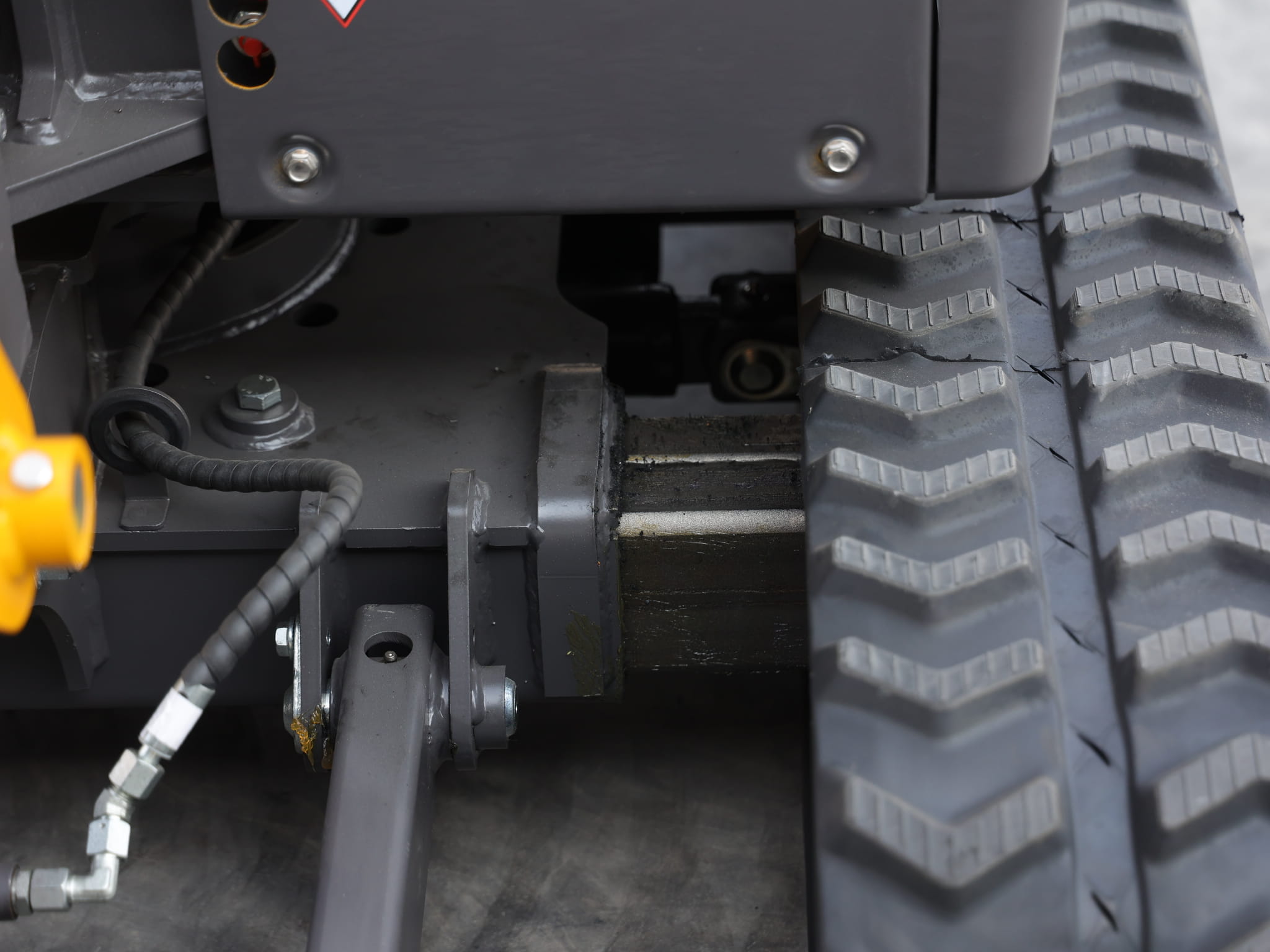

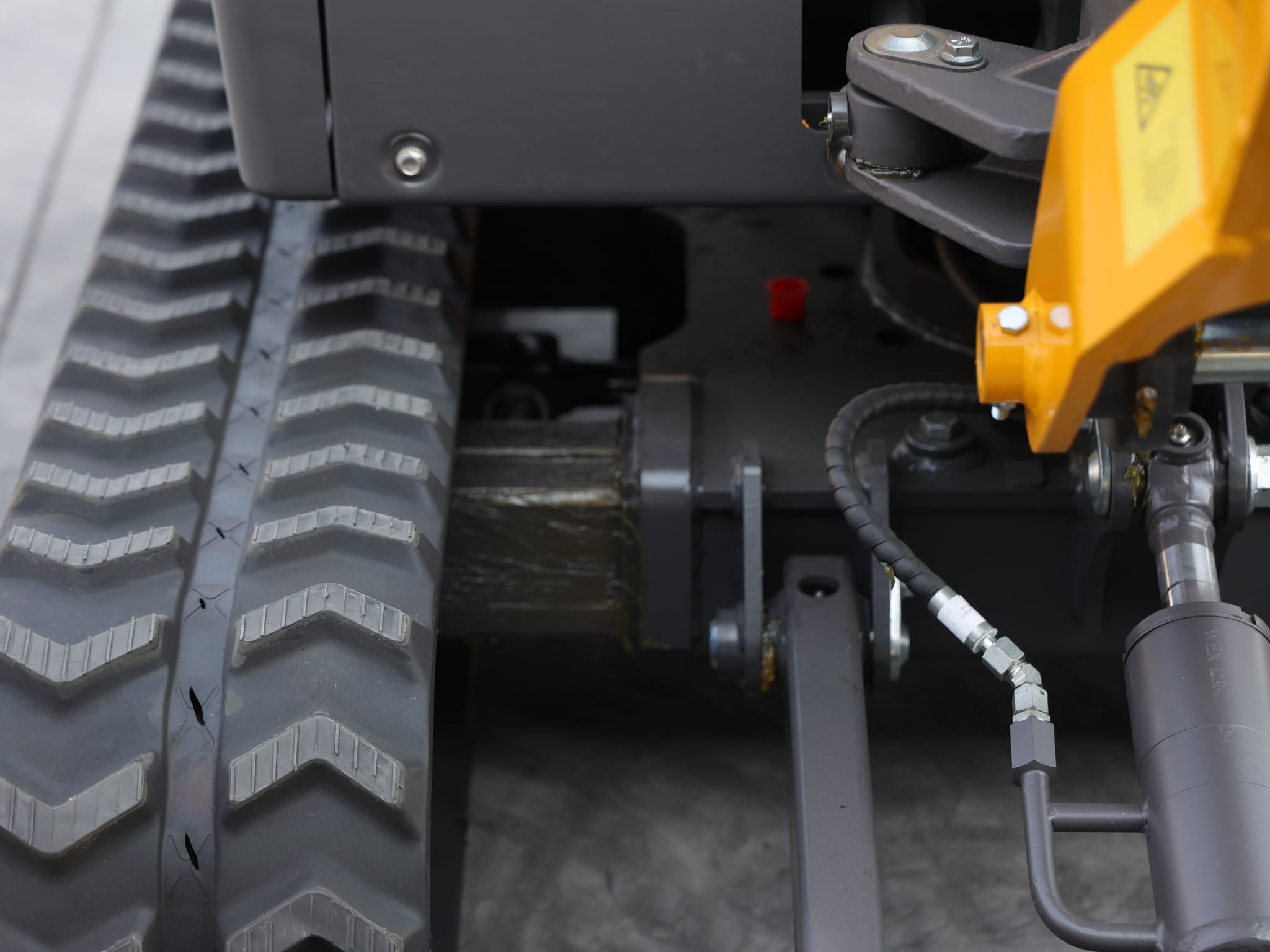

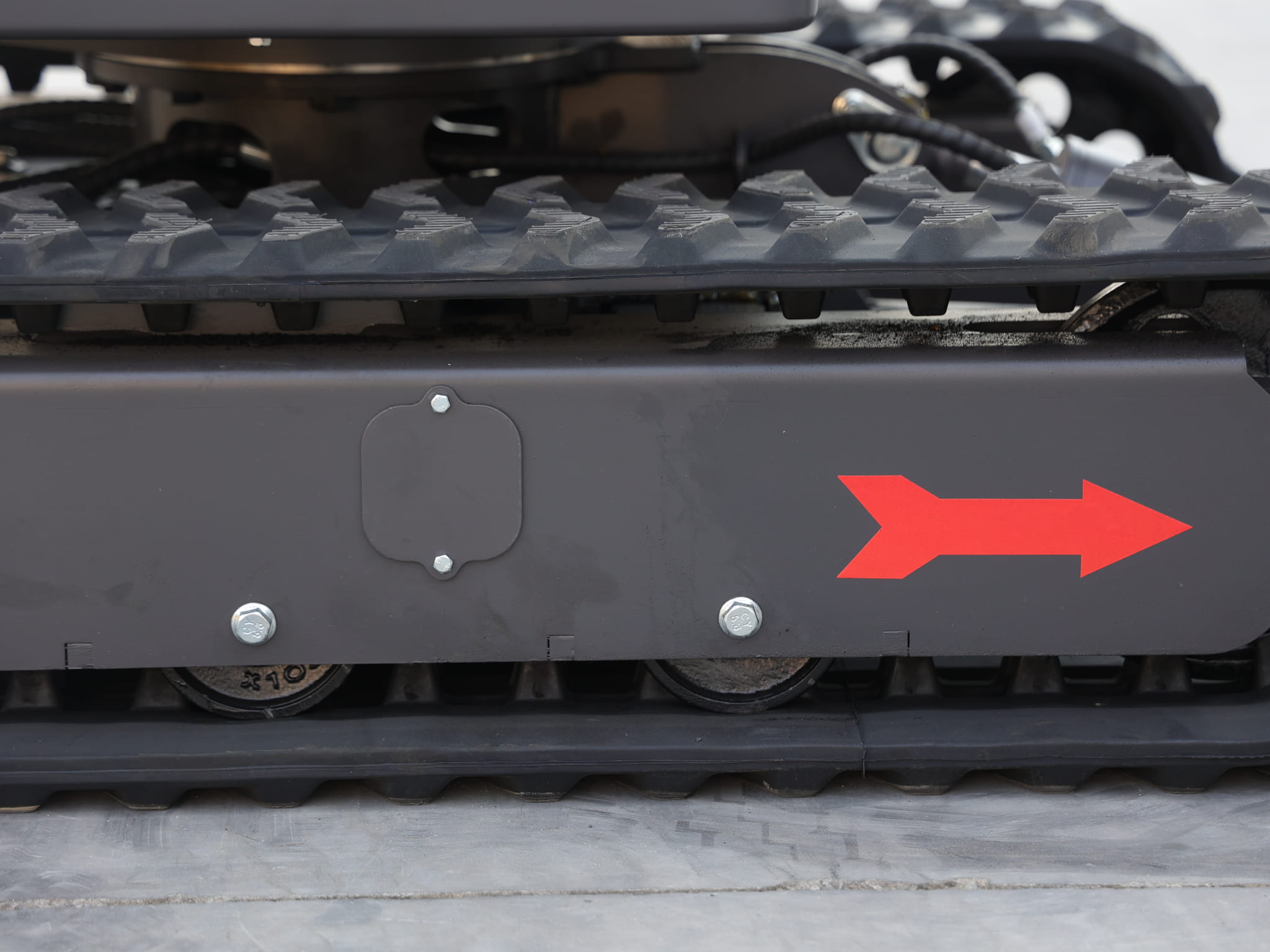

- Adjustable track width
- Spring quick coupler
- 3 buckets included

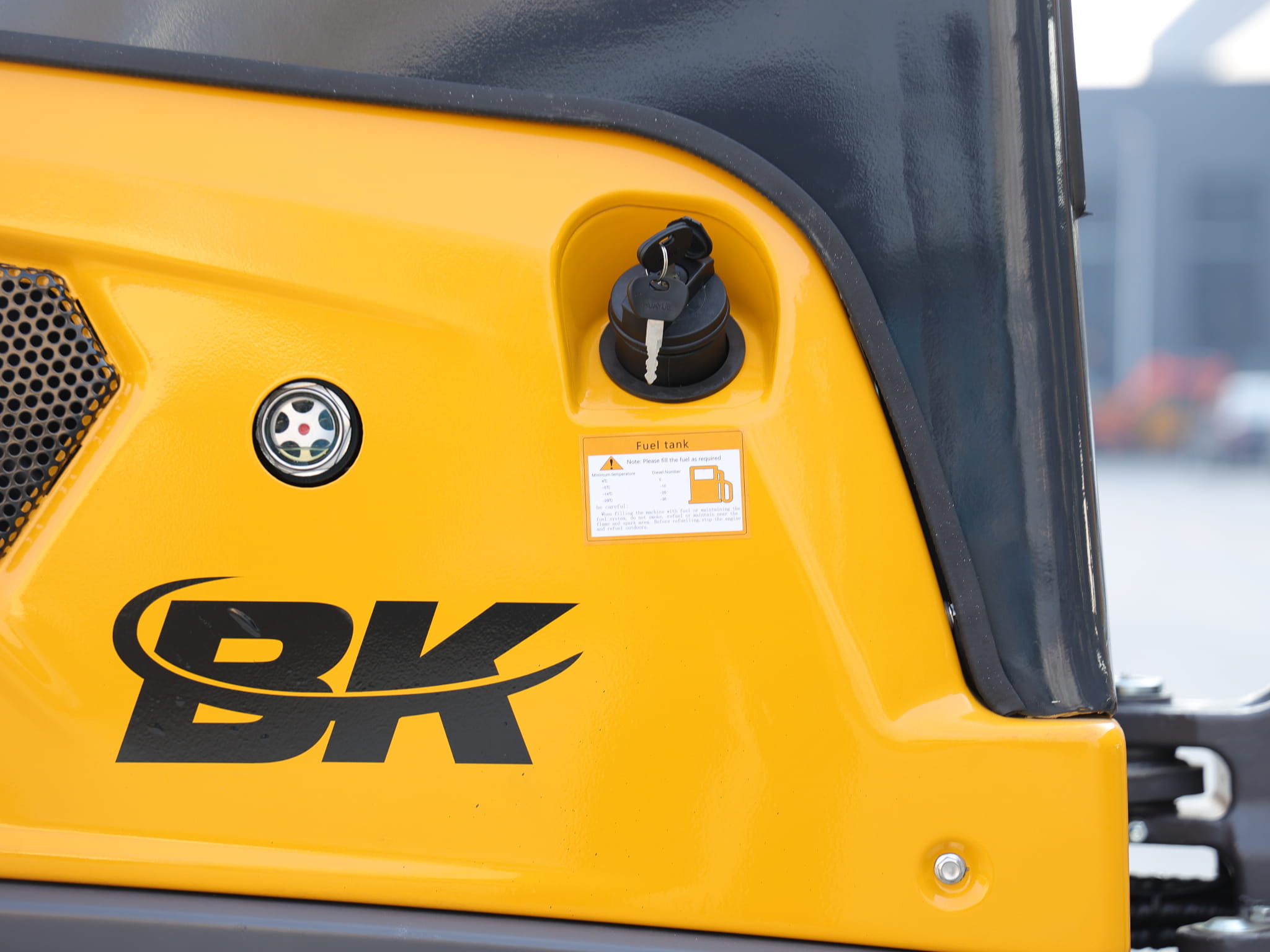

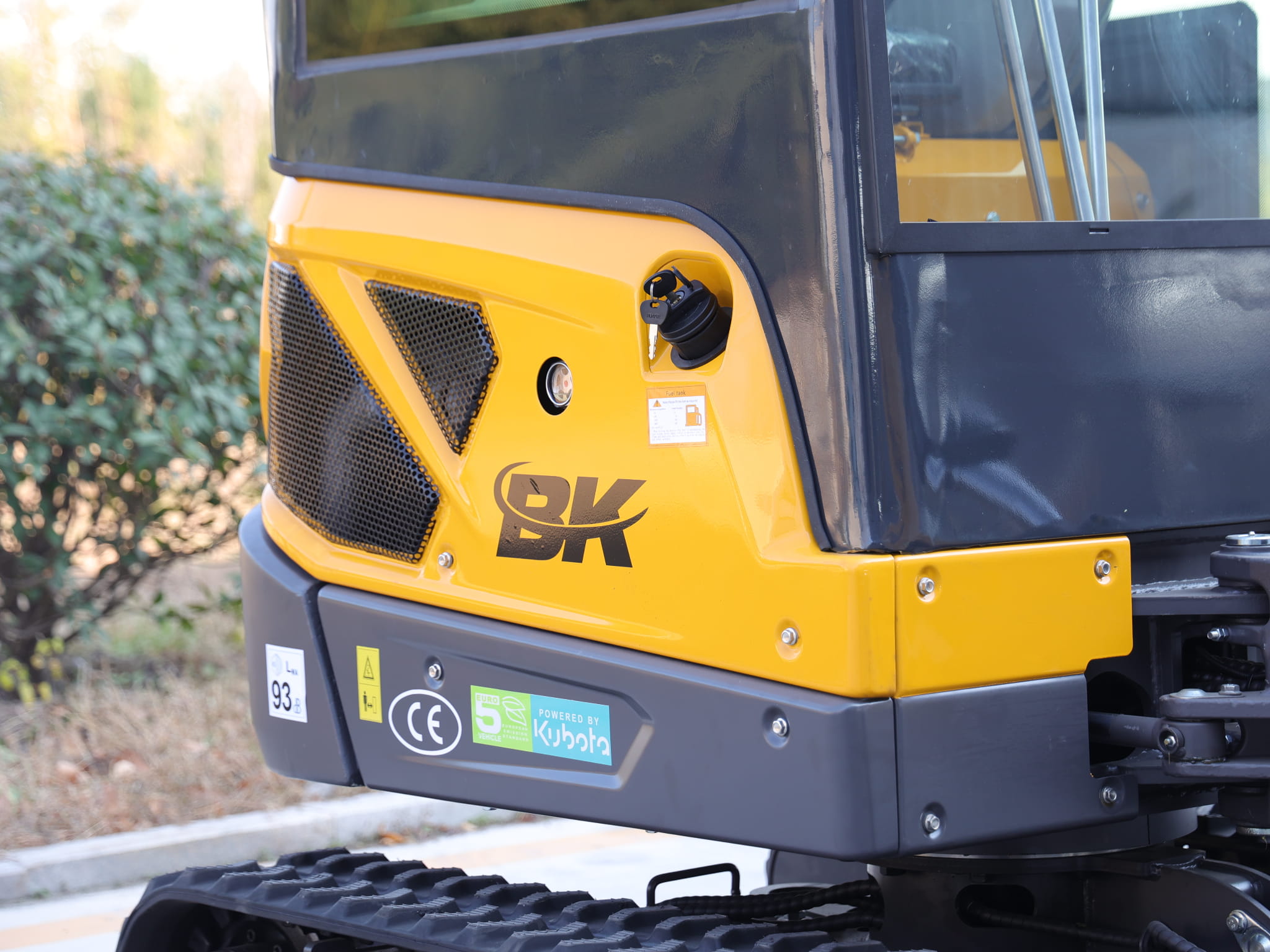

- External fuel filler
Technical Specifications
| Category | Parameter | Unit | Value |
|---|---|---|---|
| Basic parameters | Operating weight | kg | 1700 |
| Basic parameters | Bucket capacity | m³ | 0.03 |

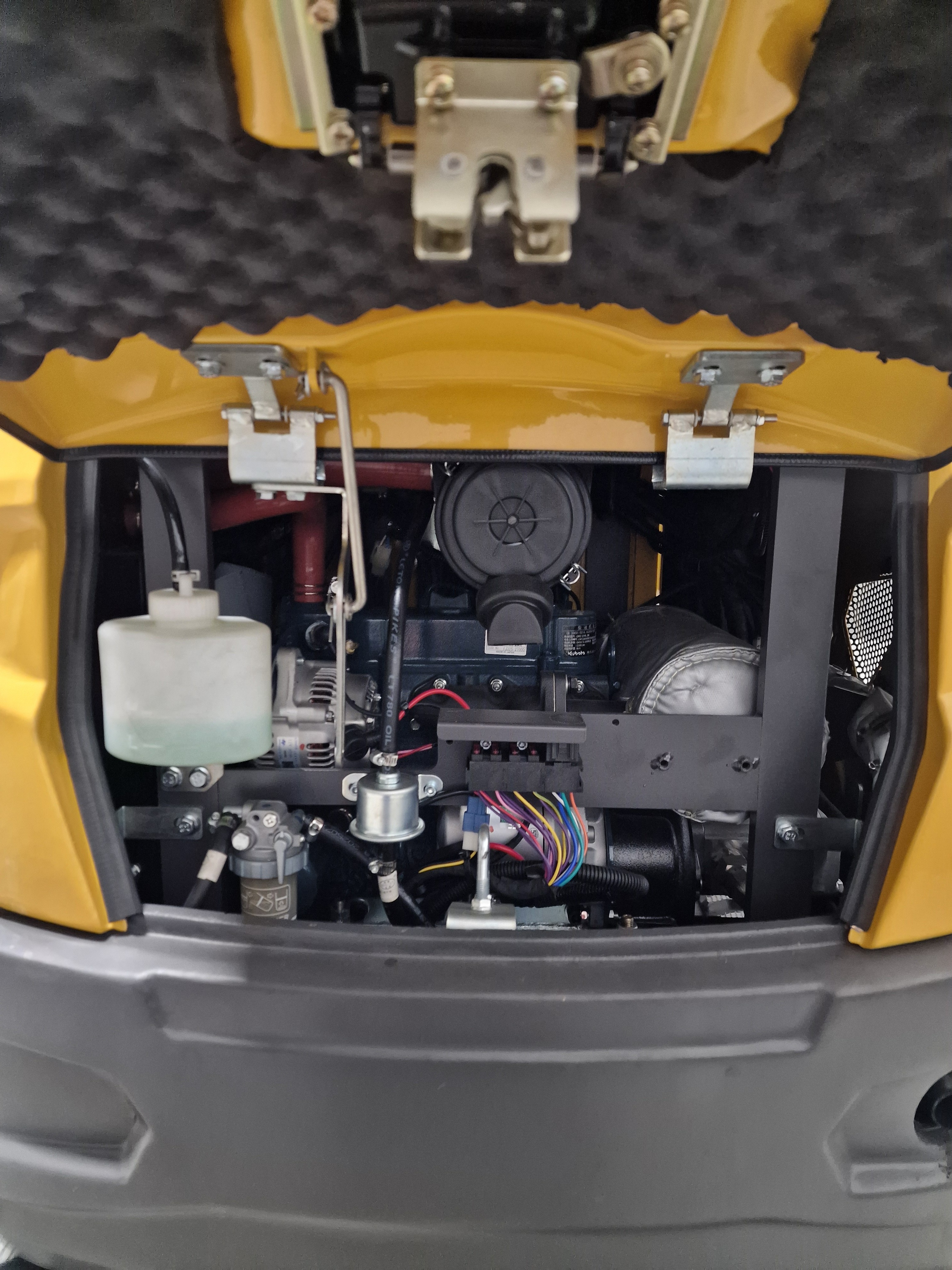

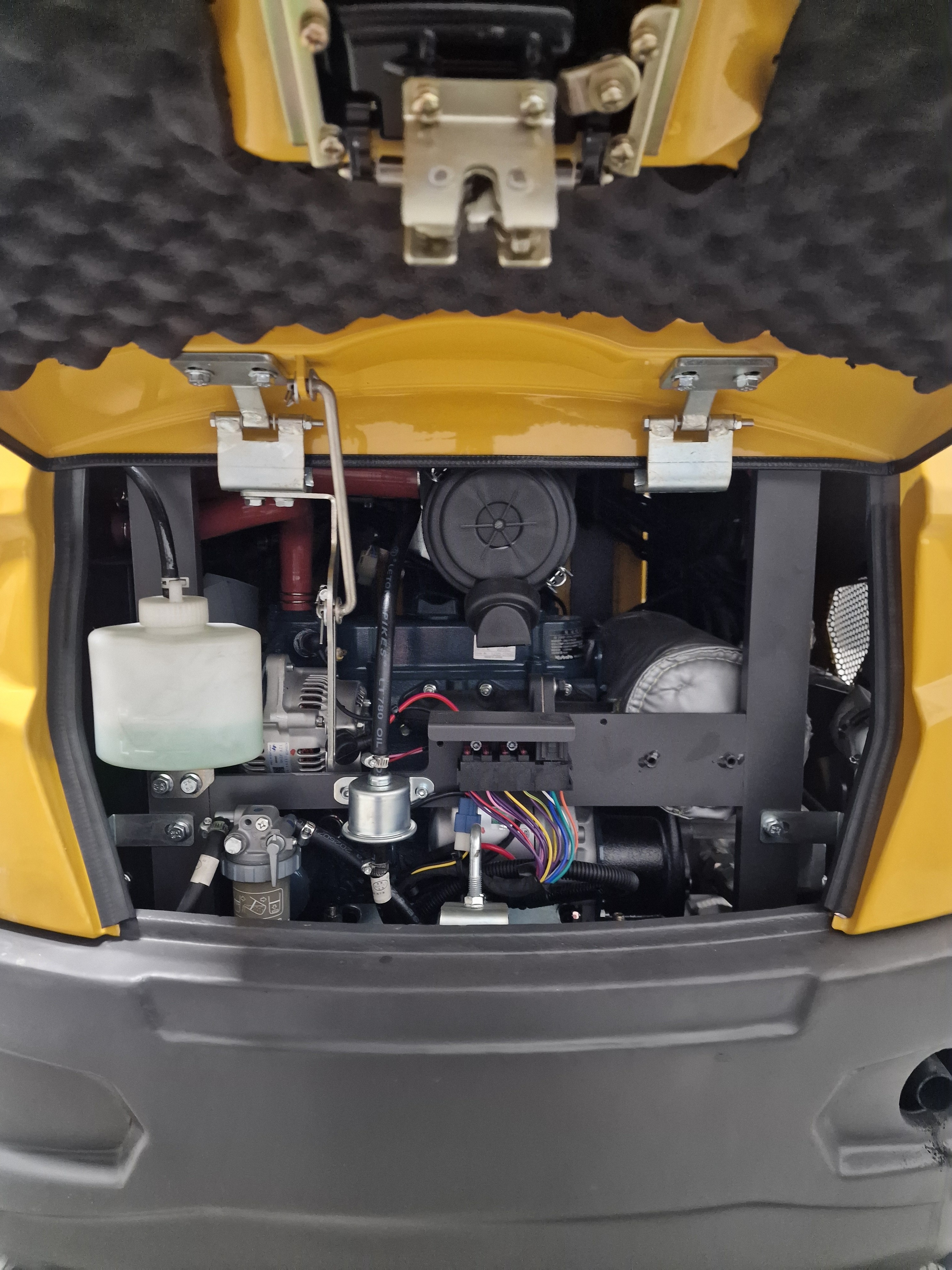

| Engine | Model | – | Kubota D902 |
| Engine | Displacement | L | 0.898 |
| Engine | Rated power / engine speed | kW / r/min | 11.8 / 2300 |
| Engine | Max. torque / speed | N·m / r/min | 51.3 / 1800 |
| Travel speeds | Max. travel speed (high / low) | km/h | 4 / 2 |
| Travel speeds | Slewing speed | rpm | 8 |
| Gradeability | Max. gradeability | ° | 30 |
| Undercarriage | Ground pressure | kPa/cm² | 0.3 |

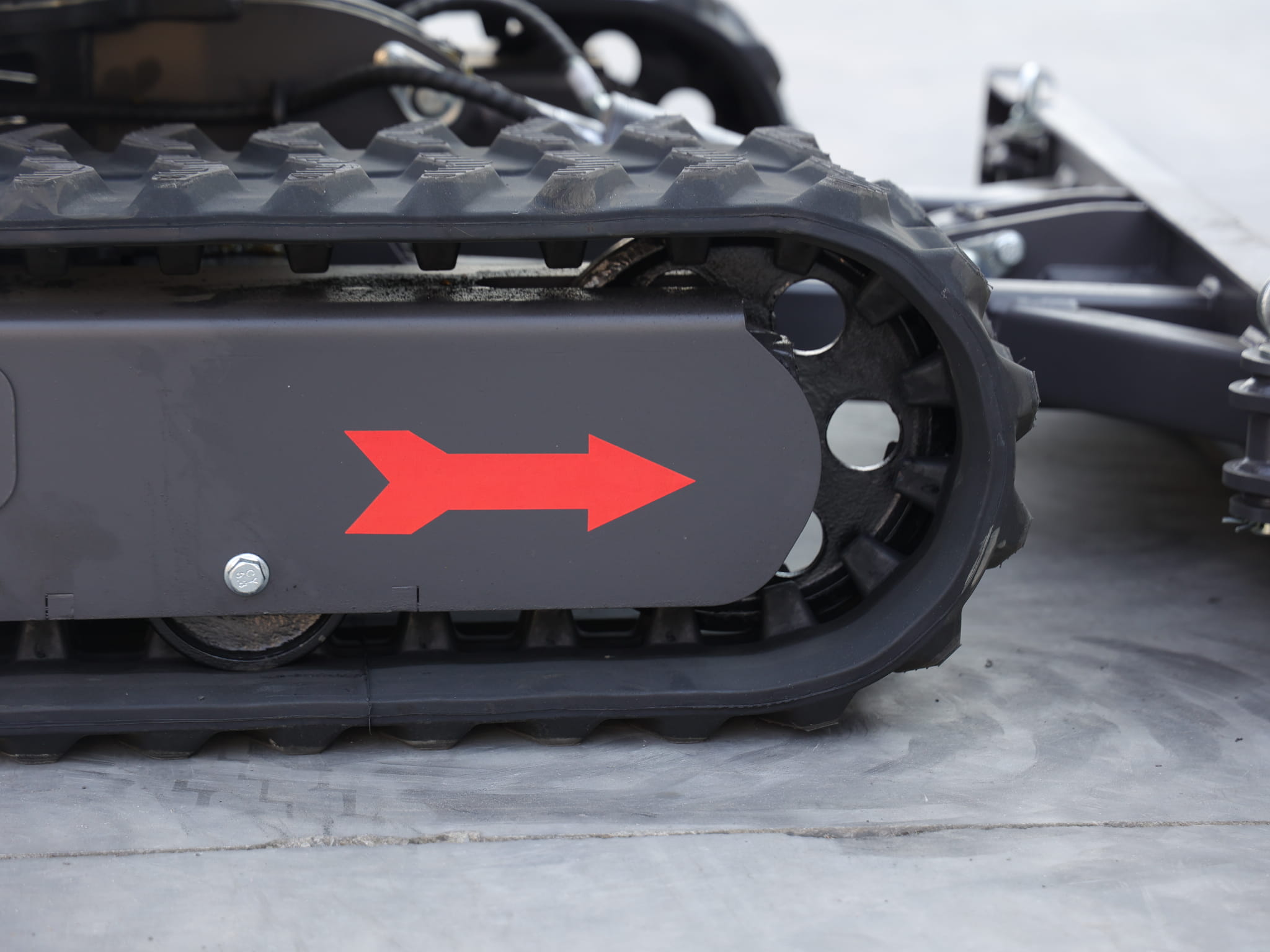

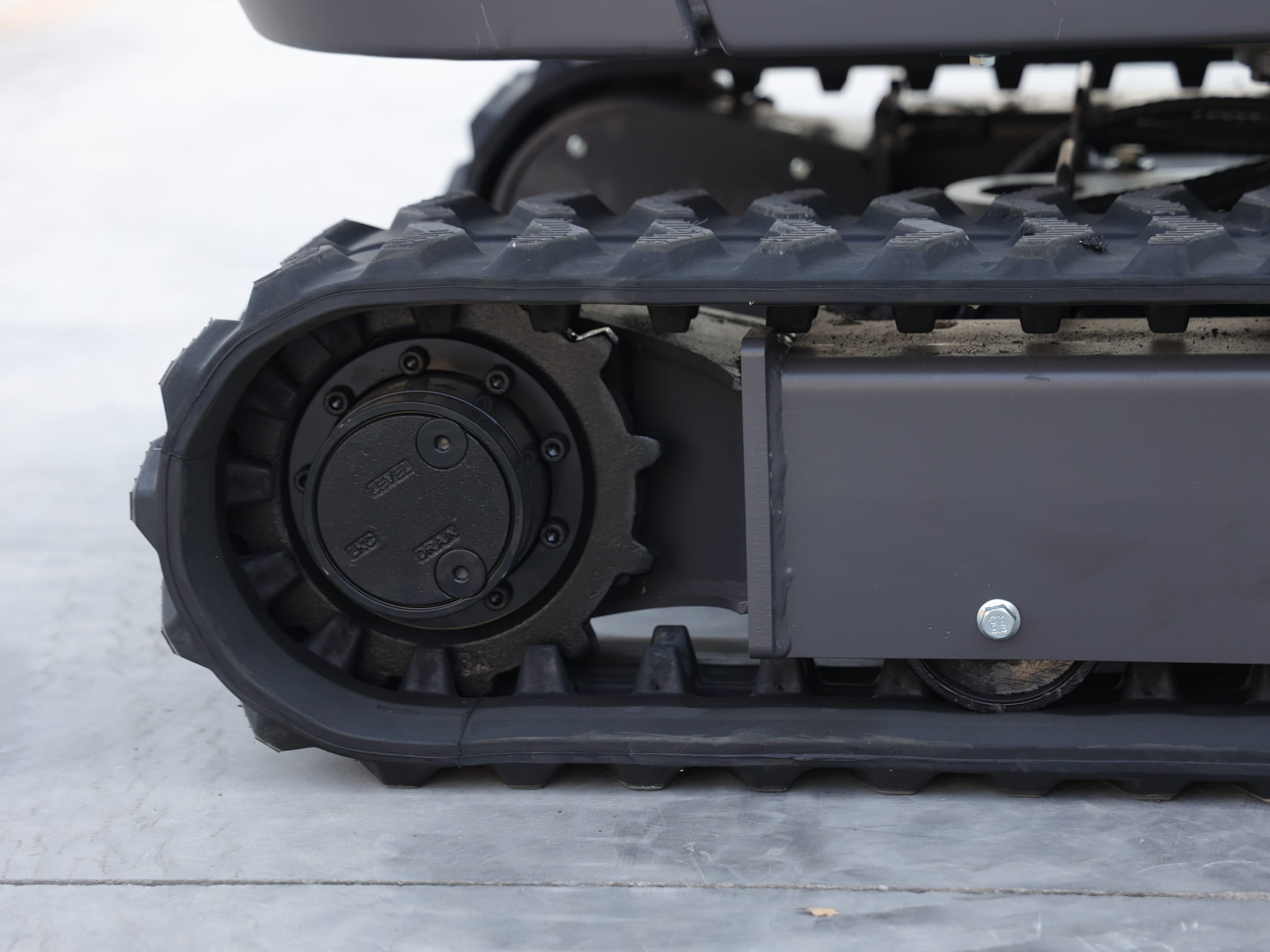

| Undercarriage | Track material | – | 230x72x43 Rubber |
| Undercarriage | Tension type | – | Mechanical |
| Hydraulic system | Pump type | – | Tianjing Double gear pump |
| Travel motor | Final drive with hydromotor | - | Hengli |
| Fluids and capacities | Working pressure | MPa | 18.5 |
| Fluids and capacities | Flow | L/min | 30 |
| Fluids and capacities | Hydraulic oil tank capacity | L | 18 |
| Fluids and capacities | Fuel tank capacity | L | 18.5 |
| Fluids and capacities | Engine oil capacity | L | 3.2 |
| Dimensions | Overall length (a) | mm | 3345 |
| Dimensions | Overall width (b) | mm | 1100 |
| Dimensions | Overall height (c) | mm | 2275 |
| Dimensions | Platform width (d) | mm | 1030 |
| Dimensions | Track length (e) | mm | 1545 |
| Dimensions | Minimum rear swing radius (f) | mm | 880 |
| Dimensions | Track shoe width (g) | mm | 230 |
| Dimensions | Track gauge (h) | mm | 1225 |
| Dimensions | Adjustable track width (i) | mm | 1000–1230 |
| Dimensions | Counterweight ground clearance (j) | mm | 400 |
| Dimensions | Track height (m) | mm | 318 |
| Dimensions | Boom swing (right) (n1) | ° / mm | 45° / 245 |
| Dimensions | Boom swing (left) (n2) | ° / mm | 45° / 245 |
| Digging parameters | A – Maximum dumping height | mm | 3065 |
| Digging parameters | B – Maximum dumping height (bucket discharge) | mm | 2210 |
| Digging parameters | C – Maximum digging depth | mm | 2100 |
| Digging parameters | D – Maximum vertical digging depth | mm | 1470 |
| Digging parameters | E – Maximum digging radius | mm | 3580 |
| Digging parameters | F – Minimum swing radius | mm | 1495 |

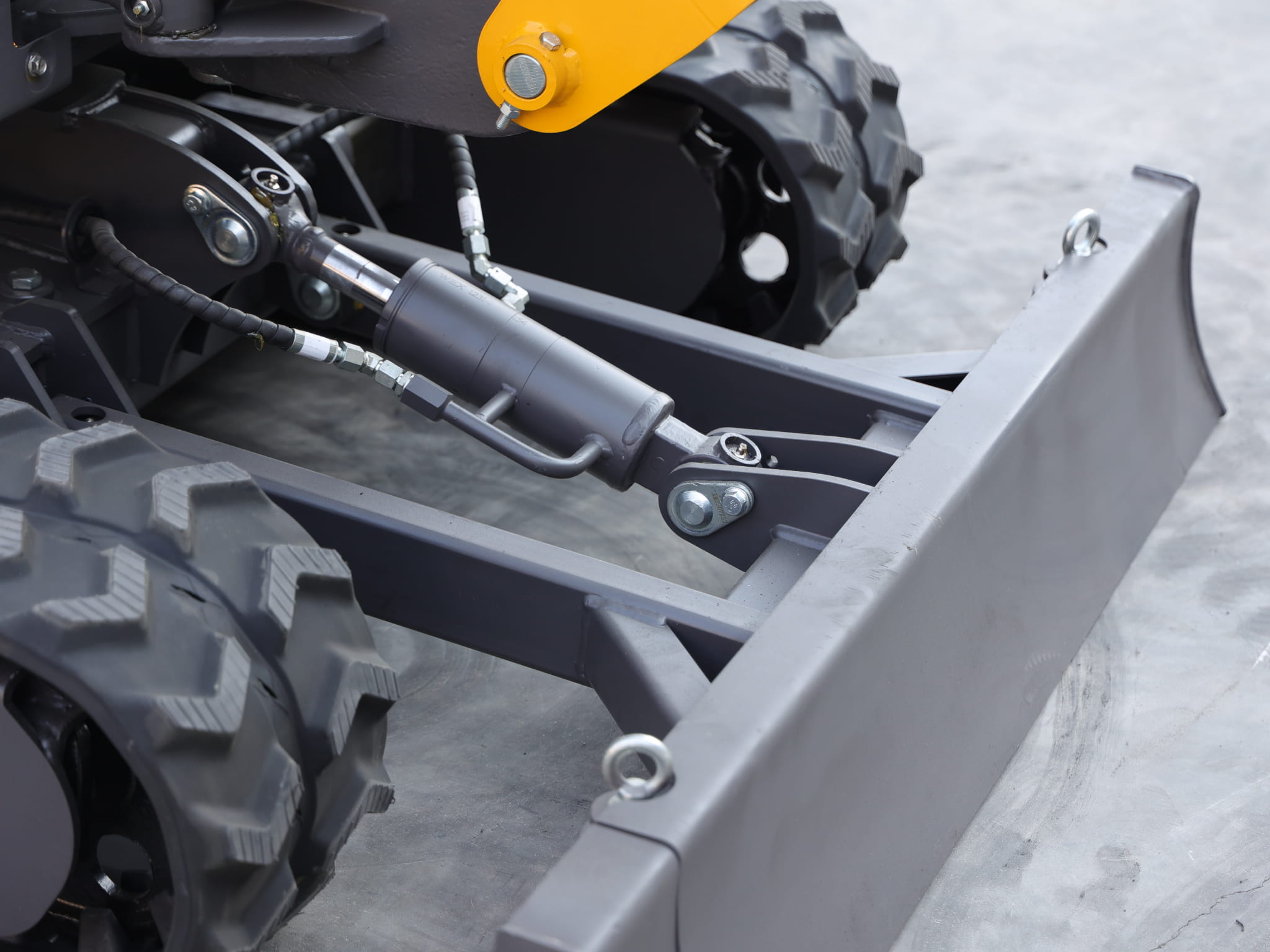

| Digging parameters | G – Max. dozer blade lifting height | mm | 160 |
| Digging parameters | H – Max. dozer blade digging depth | mm | 275 |
| Arm digging force | kN | 6,5 | |
| Bucket digging force | kN | 7,02 |
