BK3000KL Backhoe Loader
Regular price:
Regular price:
product unavailable
add to wish list
Description
Berger Kraus BK3000KL Backhoe Loader
Berger Kraus BK3000KL is a compact and versatile backhoe loader combining the capabilities of a wheel loader and an excavator. Thanks to its compact dimensions, 4×4 drive and wide working range, it is an excellent choice for construction sites, farms, earthworks, paving works, installation works, municipal applications and landscaping.
The machine is powered by a reliable 3-cylinder KUBOTA D1105 engine. Its compact design and excellent manoeuvrability allow comfortable and efficient operation even in confined spaces.
The front loader system enables loading, transporting, levelling and moving various materials, while the rear excavator arm allows the operator to perform excavation work for foundations, utility installations, connections, drainage systems and other earthworks.
Berger Kraus BK3000KL – Complete Machine Ready for Work
The combination of loader and excavator functions allows several separate machines to be replaced by one compact and versatile unit. The BK3000KL provides a wide working range while maintaining compact dimensions and excellent manoeuvrability.
Price: PLN 95,000 net
Included in the price:
- front 4-in-1 multipurpose bucket ("crocodile" type)
- pallet forks
The 4-in-1 bucket allows the machine to perform a wide variety of tasks, including loading and unloading materials, dozing, levelling and grabbing materials.
With the pallet forks, the BK3000KL can also be used for handling pallets, construction materials and other loads.
Key Features of the Berger Kraus BK3000KL
- KUBOTA D1105 engine
- 4×4 drive
- compact design
- front loader system loading to 500kg (800 kg tipping load)
- rear excavator arm with bucket 450mm
- 4-in-1 front bucket ("crocodile" type) included in the price
- pallet forks included in the price
- hydraulic working system
- excellent manoeuvrability
- compact overall dimensions
- stabiliser outriggers for excavator operation
- designed for a wide range of construction, agricultural and municipal applications
Applications
Berger Kraus BK3000KL is designed for a wide range of loading, transport and excavation tasks. It can be used for:
- construction works,
- excavation for utility installations and connections,
- earthworks and ground levelling,
- paving works,
- loading soil, sand and aggregates,
- transporting pallets and construction materials,
- agricultural applications,
- municipal works,
- landscaping and garden works.
Technical Specification
| Model | Berger Kraus BK3000KL |
| Operating weight | 2960 kg |
| Drive | 4×4 |
| Loader bucket capacity | 0.3 m³ width 1550mm |
| Excavator bucket capacity | 0.08 m³ width 450mm |
Engine
| Manufacturer / model | KUBOTA D1105 |
| Engine displacement | 1.123 L |
| Rated power | 18.2 kW / 2300 rpm |
| Maximum torque | 70.3 Nm / 1600 rpm |
| Cooling system | Liquid-cooled |
| Emission standard | Stage V |
Hydraulic and Braking System
| Hydraulic pump | Piston pump TAIFENG |
| Hydraulic working pressure | 210 bar |
| Hydraulic flow rate | 110 L/min |
| Braking system | Hydraulic |
| Service brake | Oil-cooled disc brake |
| Parking brake | Electro-hydraulic disc brake |
Fluid Capacities
| Fuel tank | 35 L |
| Hydraulic oil tank | 35 L |
| Engine oil | 5 L |

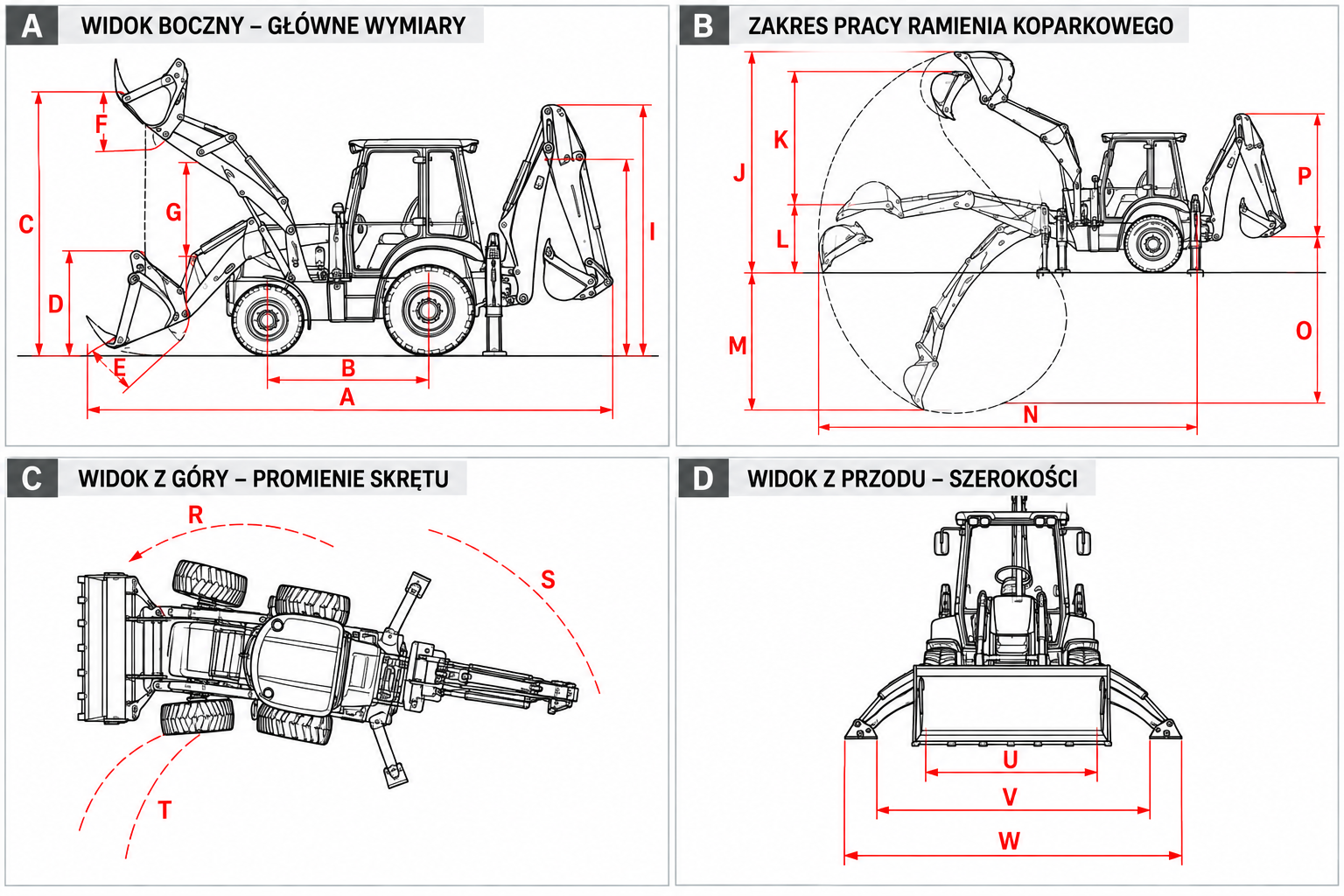

Dimensions and Operating Range
| Overall length with standard bucket | 4890 mm |
| Wheelbase | 1800 mm |
| Overall height | 2570 mm |
| Seat height above ground | 1450 mm |
| Departure angle | 23.3° |
| Approach angle | 15° |
| Overall width | 1555 mm |
| Working width | 4100 mm |
| Maximum dumping angle | 50° |
| Dumping height | 1940 mm |
| Maximum lifting height | 2230 mm |
| Maximum hinge pin height | 2925 mm |
| Maximum working height | 3034 mm |
| Maximum excavator horizontal reach | 5080 mm |
| Maximum digging depth | 3420 mm |
| Maximum flat-bottom digging depth | 2900 mm |
| Maximum vertical digging height | 1725 mm |
| Maximum excavator dumping height | 2340 mm |
| Maximum digging height | 3350 mm |
| Excavator arm swing angle | 180° |
| Stabiliser outrigger width | 1660 mm |
| Tires | 31*15,5*15 |
| Max speed | 15km/h |
| Two forward gears | 15km/h i 8km/h |
| One reverse gear | 8 km/h |
Steering System and Turning Radius
| Left and right wheel steering angle | 35° |
| Steering angle | 35° |
| Articulated turning radius | 3740 mm |
| Turning radius | 3420 mm |
|
Inner turning radius |
1400 mm |
